DN525 x 3m SN10 SewerMAX Pipe RRJ

System:
PP Drainage & Sewer Systems
Sub System:
SewerMAX
Product Code:
GR10225C

Used to convey sewage in gravity sewer mains

Features

  • Australian Made
  • Installation Economics
  • Operation Efficiences
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth bore for hydraulic performance
  • Low embodied energy for environmental benefits

Additional Information

Requires DN525 Rubber Ring Iplex Code: GERSEW522

Product Data Sheet
Link

Product properties

Size
225MM
Rating
SN7
Length
3.0M
Primary Material
POLYPROPYLENE
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
SBR
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
13
Allowable Operating Temperature - Degrees
(Up to 50°C) - Re-rating is applied >30°C
Socket Deflection
Up to 2%
Maximum Diametric Deflection - 50yrs
-292.50%
Unprotected UV Exposed
1 Years
Markings
Iplex Pipelines, DN, SN10, PP, Date of Manufacture, SewerMAX®
Product Certifications
<p><br />
<a href="https://www.iplex.com.au/resources-and-tools/white-papers/">https://www.iplex.com.au/resources-and-tools/white-papers/</a></p><br />

Mechanical properties

Density - Specific Gravity
-2.10kg/m3
Yield Strain
6%
Tensile Modulus
25 MPa
Hardness Shore D
60
Poissons Ratio
-2.55
Ring Bending Modulus - 3mins
1300MPa
Ring Bending Modulus - 50yrs
339 MPa

Thermal properties

Coefficient of Thermal Expansion
12 x 10-5/oC
Thermal Conductivity
0.22W/m.K
Specific Heat
1677 J/kg/oC
Vicat Softening Temperature
92
Flammability
Flammable

Product dimensions

Size
225MM
ID
522.3
Weight
54.62kg
Crate Qty
2
Crate Weight
109.24kg
Wall Thickness
3.2
Socket Depth
254
Max Socket Nominal OD
725
Witness Mark Detail
254
Profile Pitch
53.9

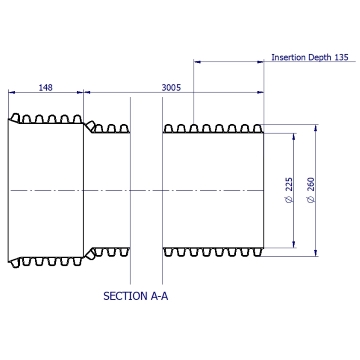

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
Environmental Accreditation

Environmental Product Declaration - EPD

POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
