Overview
- Australian Made
- Installation Economics
- Operation Efficiences
- Abrasion and Corrosion Resistant
- Treet root intrusion resistance
- Smooth bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires DN300 Rubber Ring Iplex Code: GERSEW300
Product Data Sheet
View
CAD PDF
View
Product Properties
Size/Diameter
300 mm
Rating
SN10
Length
3.0 m
Primary Material
POLYPROPYLENE
Joint Type
RRJ
Rubber Ring Material
SBR
Colour
Grey outer corrugated wall with yellow inner liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
13
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
Up to 2°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Markings
Iplex Pipelines, DN, SN10, PP, Date of Manufacture, SewerMAX®
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Yield Strain
0.06
Yield Stress
28MPa
Tensile Modulus
28 MPa
Hardness Shore D
60
Poissons Ratio
0.45
Ring Bending Modulus - 3mins
1300MPa
Ring Bending Modulus - 50yrs
342 MPa
Thermal Properties
Coefficient of Thermal Expansion
15 x 10⁻⁵ / ℃
Thermal Conductivity
0.22W/m.K
Specific Heat
1920 J/kg/°C
Vicat Softening Temperature
95°C
Flammability
Flammable

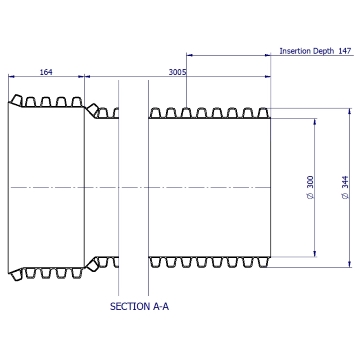

Dimensions
Size/Diameter
300 mm
Weight
24
Crate Quantity
6
Crate Weight
132 kg (22 kg per crate)
Wall Thickness
2.0 mm
Socket Depth
147 mm
Max Socket Nominal OD
403 mm
Witness Mark Detail
147mm
Socket Length
155 mm
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
Warranty
1 Year
