Plastic pipe systems offer major advantages over traditional materials for stormwater applications including corrosion resistance, installation economics, operating efficiencies and reductions in maintenance costs. Iplex’s PVC-U stormwater system from DN75 through to DN375 provides a complete pipe and fittings range for stormwater disposal.

IMG 0994

Filters CLOSE

Our Stormwater range

Use the filters below to refine your search criteria

Applications

Applications

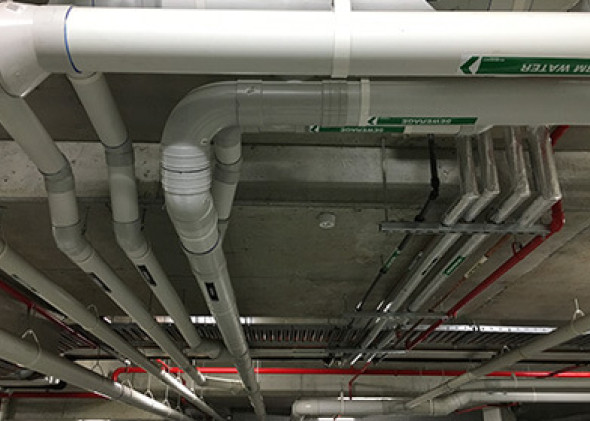

Iplex's PVC-U Non-pressure Stormwater Drainage System can be used above or below ground for rain to run-off from various surfaces such as: roads; roofs and driveways and other natural water bodies such as: creeks; rivers and the sea.

The comprehensive PVC-U stormwater range of pipe and fittings up to 375mm offers a pipeline solution for stormwater applications.

Stormwater PVC-U Non-pressure Pipe and Fittings - Product Catalogue and Technical Guide

Advantages

Advanced plastic pipe systems offer major advantages over traditional materials for stormwater applications.

Features Benefits
Light weight Savings on Freight and Handling, due to the light weight of Iplex's PVC-U Stormwater pipes and fittings.
High flow rate

Iplex’s PVC-U pipe systems have an unrivalled hydraulic capacity due to the extremely smooth bore and precision joints. Flatter grades are possible using PVC-U pipe systems.

Flammability PVC-U does not support combustion.
Non-conductivity PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic corrosion.
Tree root Intrusion resistance Properly made solvent weld joints have been shown to have excellent resistance to the tree root intrusions that cause blockages and infiltration in other systems.
Fittings range The Iplex PVC-U stormwater system contains a complete range of adaptors to enable connection to a wide range of downpipes and other pipe systems.
Low installation cost The light weight of Iplex Stormwater pipes together with longer pipe lengths flexibility and the use of narrow trench widths significantly reduces installation costs, the major portion of the total in-situ costs.

Material Options

Material Options

Mechanical Properties

The mechanical properties are for PVC-U at 20°C

Property Value & Unit
Density (Specific Gravity) 1.47
Ultimate tensile strength 52MPa
Yield Strain 5.50%
Compressive strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3 min 3200MPa
Ring Bending Modulus - 50 yrs 1400Mpa



Thermal Properties

Property Value & Unit
Coefficient of Thermal Expansion 7 x 105/°C
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/°C
Vicat Softening Temperature 75°C
Typical Fire Resistance Properties
Property Value & Unit
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed  8
Fire Index - Spread of Flame 0
Fire Index - Heat Evolved 1

Chemical Resistance

PVC-U pipes have high resistance to a wide range of chemical reagents. Such resistance, however, is a function of temperature, concentration and pressure.

In general, PVC-U is suitable to convey strong acids, alkalis and aqueous solutions (except those which are strongly oxidising), aliphatic hydrocarbons, fluorides, photographic and plating solutions, brine, mineral oils, fats and alcohols. The suitability of a pipeline for conveying a certain chemical will depend on such factors as the concentration of the chemical in the fluid to be conveyed, temperature, flow rate, the presence of pockets or “dead spots” in the pipeline and other factors.

View the Iplex Chemical Resistant Tool

Product Details

Product Details

Standards and Approvals

Iplex PVC-U pipe is manufactured to the Australian Product Standard under a third party accredited Quality Management System (QMS) with ISO 9001.

PVC-U non-pressure stormwater pipes has ISO Type 5 third-party StandardsMark certification, licence numbers: SMK in accordance with Australia/New Zealand Standard AS/NZS 1254 “Unplasticised PVC (PVC-U) Pipes and Fittings for Stormwater or Surface Water Application.”

Iplex PVC-U stormwater pipe and fittings contain no lead stabiliser.

View Iplex Product Certifications

Colour and Markings

Some Iplex stormwater pipe and fittings contain a percentage of recycled material when manufactured, consequently colour can vary, however, most pipe manufactured is white in colour. Stormwater pipe and fittings contain a UV absorber (Tio2) and can be installed in direct sunlight.

Iplex stormwater pipe is branded in accordance with AS/NZS 1254, which includes the date and place of manufacture.

Environmental Credentials

Iplex PVC-U non-pressure stormwater pipe is certified to confirm to the Best Environmental Practice PVC (BEP PVC) provisions of AS/NZS 1260.

The Green Building Council of Australia (GCBA) has defined the standards for best practice environmental performance for PVC manufacturing, against which Iplex’s processes have been audited by an independent certifying body. These permit users of Iplex PVC-U non-pressures pipes to claim positive PVC Credit Points under the GBCA’s Green Star Rating Scheme Learn More.

Iplex Pipelines have published verified Environmental Product Declaration (EPD) on our range of PVC-U non-pressure Pipes. EPD’s are third party certified documents based on ISO 14025 and EN 15804 Standards that communicate transparent and comparable information about the life-cycle environmental impact of a product or service. Specifically, product declarations include information on the environmental impact of raw material acquisition, energy use and efficiency, composition of materials and chemical substances, emissions to air, soil and water and waste generation.

View Iplex's PVC-U Non-Pressure EPD

Stormwater PVC-U Non-pressure Pipe Range and Dimensions

Stormwater PVC-U Non-pressure Pipe Range Size and Dimensions

PRODUCT CODE

TYPICAL DIMENSIONS

DN NOMINAL SIZE

(mm)

RATING

Dim. (m) L

Min. mean outside dia (mm) L1

Typical wall thickness min. (mm) L2

WPSO75

75

SN2

6

75.0

1.6

WPSO90

90

SN2

6

90.0

1.9

WPSO90EH

90

SN4

6

90.0

2.5

WPSO150

150

SN2

6

160

3.2

WPSO225

250

SN2

6

250.0

5.5

WPSO300

300

SN2

6

315.0

6.0

WPSO375

375

SN2

6

400.0

7.9



Slotted Stormwater Pipe Range Size and Dimensions

PRODUCT CODE

TYPICAL DIMENSIONS

DN NOMINAL SIZE

(mm)

Dim. (m) L

Min. mean outside dia (mm) L1

Max. mean outside dia (mm) L1

Typical wall thickness min. (mm) L2

WPSO90SL

90

6

90.0

90.3

1.9



Stormwater Plain Bend F&F:

PRODUCT CODE

TYPICAL DIMENSIONS

 NOMINAL SIZE

(mm)

Angle (deg) a

Dim. (mm) L

Dim (mm) L1

Dim. (mm) L2

W0027522

75

22 ½

47

35

75

W0027545

75

45°

51

30

75

W0027590

75

90°

57

20

75

W0029015

90

15°

37

28

90

W0029022

90

22 1/2°

40

28

90

W0029045

90

45°

49

28

90

W0029090

90

90°

75

28

90

W00215015

150

15°

82

64

160

W00215045

150

45°

105

64

160

W00215090

150

90°

153

64

160


Iplex Stormwater PVC-U Non-pressure Pipe Range and Dimensions

Handling & Storage

Handling & Storage

PVC-U Stormwater Handling and Storage

Installation & Testing

Installation & Testing

PVC-U Stormwater Installation

PVC-U Stormwater Testing

Maximum spacing of pipe supports for non-pressure pipes

Maximum spacing of pipe supports for non-pressure pipes AS/NZS 2032:2006

Nominal size of pipe Graded pipelines  Vertical pipelines
32 0.90 1.80
40/50 1.00 2.00
65-150 1.20 2.50
>150 1.50 3.00
