RACCORD
At Iplex we work hard to deliver products and solutions that provide long term value to our customers and stakeholders. The Raccord Plast brand has a reputation as a high-quality fitting that has been distributed into the Australian market for over 20 years.
Technical Guide
Features & Benefits
Advantages

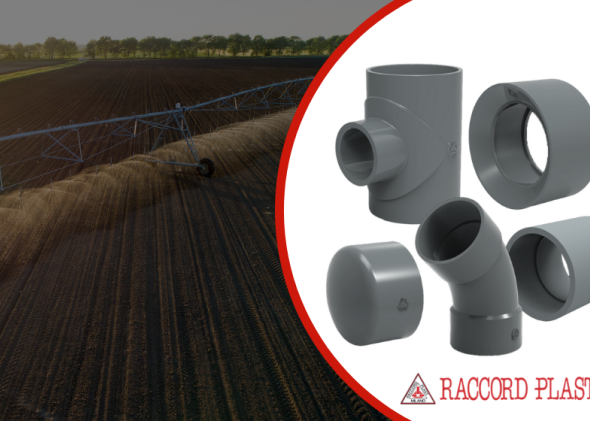

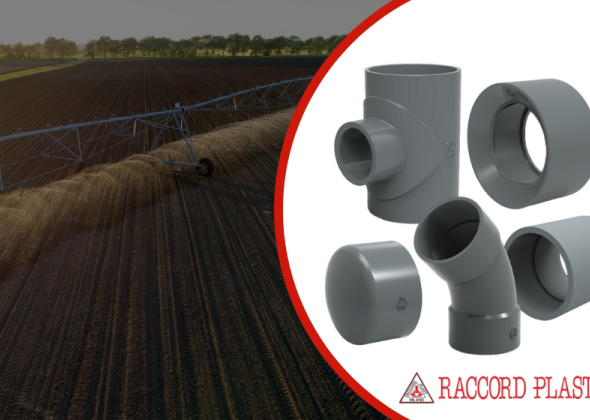

Raccord Plast are an Italian manufacturer and their large bore fittings have been primarily used for swimming pool and irrigation applications.
|
Features |
Benefits |
|---|---|
|
Excellent internal/external corrosion resistance |
Long service life and reduced need for ongoing repairs, resulting in lower maintenance costs over the product’s lifetime. |
|
Compatible with pipes made to Australian Standard AS/NZS 1477 “PVC pipes and fittings for pressure applications” Series 1 dimensions |
No fuss-jointing with Solvent Weld Joints or Bolted Flange Joints |
|
Lightweight |
Ease of handling and reduced laying costs |
|
Suitable for use with potable water |
Broad range of applications |
|
Wide product range |
Including PVC bends, elbows, reducing bushes, couplers, reducing couplers, caps, toes, reducing tees and stubs. |
Product Details
Product dimensions
Joint
|
Product Code |
Product Type |
Nominal Size |
PN Rating |
|
P00510200150 |
Reducing Bush |
200x150 |
PN10 |
|
P00510225150 |
Reducing Bush |
225x150 |
PN10 |
|
P00510225200 |
Reducing Bush |
225x200 |
PN10 |
|
P00510250150 |
Reducing Bush |
250x150 |
PN10 |
|
P00510250200 |
Reducing Bush |
250x200 |
PN10 |
|
P00510250225 |
Reducing Bush |
250x225 |
PN10 |
|
P00508300150 |
Reducing Bush |
300x150 |
PN8 |
|
P00508300200 |
Reducing Bush |
300x200 |
PN8 |
|
P00508300225 |
Reducing Bush |
300x225 |
PN8 |
|
P00508300250 |
Reducing Bush |
375x250 |
PN8 |
|
P00505375250 |
Reducing Bush |
375x250 |
PN5 |
|
P00505375300 |
Reducing Bush |
375x300 |
PN5 |
|
P00610200 |
End Cap |
|
PN10 |
|
P00710200 |
Coupling |
200 |
PN10 |
|
P00710225 |
Coupling |
225 |
PN10 |
|
P00710250 |
Coupling |
250 |
PN10 |
|
P00708300 |
Coupling |
300 |
PN8 |
|
P00705375 |
Coupling |
375 |
PN5 |
|
P00810200150 |
Reducing Coupling |
250x150 |
PN10 |
|
P00810225200 |
Reducing Coupling |
225x200 |
PN10 |
|
P00810250200 |
Reducing Coupling |
250x200 |
PN10 |
|
P00810250225 |
Reducing Coupling |
250x225 |
PN10 |
|
P00808300150 |
Reducing Coupling |
300x150 |
PN8 |
|
P00808300200 |
Reducing Coupling |
300x200 |
PN8 |
|
P00808300225 |
Reducing Coupling |
300x225 |
PN8 |
|
P00805375250 |
Reducing Coupling |
375x250 |
PN5 |
|
P00805375300 |
Reducing Coupling |
375x300 |
PN5 |
|
P01010200 |
Elbow |
200 |
PN10 |
|
P01010225 |
Elbow |
225 |
PN10 |
|
P01010250 |
Elbow |
250 |
PN10 |
|
P01008300 |
Elbow |
300 |
PN8 |
|
P01005375 |
Elbow |
375 |
PN5 |
|
P01310200 |
Elbow |
200 |
PN10 |
|
P01310225 |
Elbow |
225 |
PN10 |
|
P01310250 |
Elbow |
250 |
PN10 |
|
P01308300 |
Elbow |
300 |
PN8 |
|
P01305375 |
Elbow |
375 |
PN5 |
|
P01605375S |
Stub Flange |
375 |
PN5 |
|
P01605375R |
Backing Ring |
375 |
PN5 |
|
P01610150 |
Backing Ring |
150 |
PN10 |
|
P01610200 |
Backing Ring |
200 |
PN10 |
|
P01610225 |
Backing Ring |
225 |
PN10 |
|
P01608250 |
Backing Ring |
250 |
PN8 |
|
P01608300 |
Backing Ring |
300 |
PN8 |
|
P01910200200 |
Equal Tee |
200 |
PN10 |
|
P01910250250 |
Equal Tee |
250 |
PN10 |
|
P01908300300 |
Equal Tee |
300 |
PN8 |
|
P01904375375 |
Equal Tee |
375 |
PN4 |
|
P01910200150 |
Reducing Tee |
200x150 |
PN10 |
|
P01910250150 |
Reducing Tee |
250x150 |
PN10 |
|
P01910250200 |
Reducing Tee |
250x200 |
PN10 |
|
P01908300150 |
Reducing Tee |
300x150 |
PN8 |
|
P01908300200 |
Reducing Tee |
300x200 |
PN8 |
|
P01904375300 |
Reducing Tee |
375x300 |
PN4 |
|
P01910225225 |
Equal Tee |
225 |
PN10 |
Thermal Properties
|
Property |
Value & Unit |
|
Max Continuous Service Temperature |
50°C |
|
Specific Heat |
1045 J/kg/°C |
|
Thermal Conductivity |
0.138-0.150 W/m/°C |
|
Coefficient of Thermal Expansion |
7 x 10-5 / °C |
|
Vicat Softening Temperature |
Approx. 80°C |
PVC-U Pipe is non-conductive and cannot be used for earthing electrical equipment.
|
Property |
Value & Unit |
|
Volume Resistivity |
1016 ohm.cm (60% RH) |
|
Surface Resistivity |
1013 - 1014 ohm |
|
Power Factor (at 20°C) |
0.015 - 0.020 |
|
Coefficient of Thermal Expansion |
7 x 10-5 / °C |
|
Dielectric Constant (at 25°C) |
3.4 - 3.6 (60 Hz) |
Temperature Effects
PVC-U material is suitable for service temperatures between 0°C and 50°C, it is self-extinguishing and does not support combustion when the source of ignition is removed.
PVC-U material should not be used for continuous service temperatures above 50°C, as deformation of the pipe may result.
Impact Strength
PVC-U pipes and fittings have good impact resistance. However, at very low temperatures (e.g. Below 5°C) the impact resistance of PVC-U materials is reduced. Therefore, when installing PVC-U at low temperatures extra care must be taken when handling and inserting pipes and fittings.
PVC-U pipes are however installed in some of the coldest regions of Europe and North America in large quantities without difficulty.
Chemical Resistance
PVC-U materials must not be used with aromatic or chlorinated hydrocarbons, ketones, esters and ethers.
Colour and Markings
The Raccord fittings are manufactured in a dark grey colour.
Certifications & Approvals
Standards and approvals
The Raccord Plast fittings are manufactured with dimensions in accordance with Australian Standards AS/NZS1477 “PVC pipes and fittings for pressure applications”.
