GATIC® has a long and proud history of manufacturing in Australia, producing products that are the benchmark in its industry. GATIC® has been specialising in the manufacture and marketing of access covers and gratings since 1937. With over 75 years of foundry experience and large manufacturing and distribution network, GATIC® is well placed at the forefront of the industry for product quality, innovation, technical support and customer service.

search-large
Filters CLOSE

Our GATIC range

Use the filters below to refine your search criteria

Applications

Applications

GATIC®’s extensive range of access covers and gratings are designed and manufactured to meet the highest standards set by the civil and construction industry worldwide and are used in the following applications:

GATIC® Product Application
Circular Covers
  • Used on circular pits whereby simplifies forming the pit top
Square and Rectangular Covers One -part frame and units are suitable for use over shaft, pit or access opening such as:
  • Sewers
  • Stormwater drains
  • Pressure pipelines
  • Cables
  • Septic tanks
Two or three-part frames are designed for openings where the length is substantially larger than the width including:
  • Vanes and Metering
  • Cable jointing pits
  • Interceptor trap pits
Trench Runs
  • Power or telephone cable ducts
  • Oil, steam or gas conduit trenches
  • Service trenches
Multi-Part Covers
  • Typically used for pit and floor opens over:
  • - Transformers
  • - Stand-by generator sets
  • - Lift wells
  • - Valve installations
Side Entry Covers
  • Designed for use on road drainage side entry pits, available to suit different traffic conditions and hydraulic performance

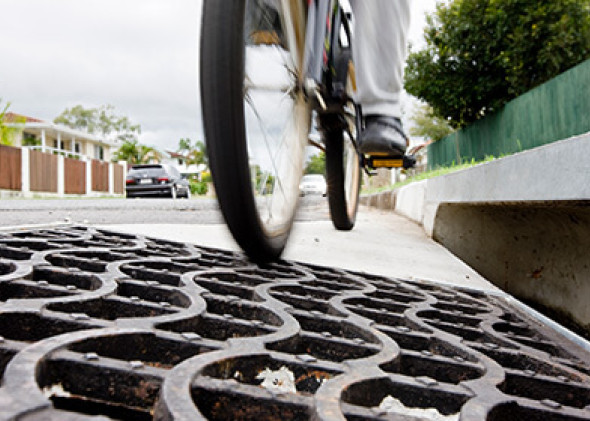

Ductile Iron Gratings
  • Factory floors where processes involve water or other fluids
  • Road crossings where complete water catchment is required
  • Wharf areas, airport aprons and taxiways
  • Areas used by forklift trucks where shallow spoon drains or dished inverts are unacceptable
  • Basements protected by fire sprinkler systems where flooding would create a problem
  • At the junctions between footpaths and paved areas such as service stations and city squares
  • Across large doorways to prevent the ingress of water
  • Swimming pool surrounds
Galvanised Mild Steel (GMS) Grating Sump Grates
  • Car parks
  • Quadrangles
  • Storage yards
  • Plaza’s gardens
  • Wash room facilities
Trench Gate
  • Factory floors where processes involve water and other fluids
  • Basements protected by fire sprinkler systems where flooding would create a problem
  • Across large doorways to prevent the ingress of water
Gully Grate
  • Road drainage
V-Gully Grate
  • Road drainage



GATIC TECHNICAL GUIDE

Advantages

Features Benefits
Multi-parts
  • The mating undercut/drawbut butt joints of covers within each row provide adequate strength and stability without the need for cross supports over the opening
  • There is no limit to the number of rows that can but used
  • Covers can be removed for partial or complete access to the opening as required
Side Entry Covers
  • Strength and durability
  • Easy and safe to operate with GATIC®’s range of lifting equipment
  • Economic design
Ductile Iron Gratings
  • Modular design – runs are built from a range of standard grates and bolted frame sections to suit any required length
  • Unrestricted trench access – grates can be removed individually for partial or complete access to the trench
  • Hydraulic efficiency – grate openings have been designed to prevent the ingress of large harmful debris whilst allowing smaller unobjectionable material to pass through without clogging the grate
  • Strength and durability – made from ductile iron grade 500-7 for superior strength to weight ratio
  • Stability under load – frame bar design ensures stable, permanent keying of frame in surrounding concrete
Galvanised Mild Steel (GMS) Grating
  • Durable and slip resistant surfaces in every direction, maximising safe working surfaces
  • GATIC®’s latticework of bearing bars and cross bars welded in a fixed configuration provides high strength and light weight
  • Design flexibility – gratings can be pre-cut to customers specification



Product Details

Product Details

Standards and Approvals

AS3996 – Access Covers and Grates .

EN124 – Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas

View Iplex Product Certifications

Quality

GATIC® is committed to operate under a strict International Quality Management System in accordance with ISO 9001. Its objective is to satisfy and exceed our customers requirements and expectations in both quality products and services. Rigorous testing and quality control throughout the production process are audited and continuously improved to ensure that GATIC®’s products complies with Australian Standard AS3996 and European Standard EN124.

To ensure consistent quality and performance, all GATIC® products are inspected as follows prior to delivery.

  • Dimensional tolerance check
  • Material compositions
  • Batch traceability data
  • Load testing (in accordance with AS3996 or EN124)
  • Keyhole gauge fit
  • Machining
  • Anti-rocking
  • Painting surfaces
  • General appearance
  • Packaging
GATIC® Mechanical Testing Laboratory

GATIC®’s Mechanical Testing laboratory is recognised and accredited by the National Association Testing Authorities, Australia (NATA Laboratory Accreditation No. 14262). Load tests are carried out on the capacity test rig as part of GATIC®’s Quality Assurance program in accordance with Australian Standard AS3996 and European Standard EN124. Test reports are available on request.

GATIC® also undertakes the following tests both inhouse and through independent institutes:

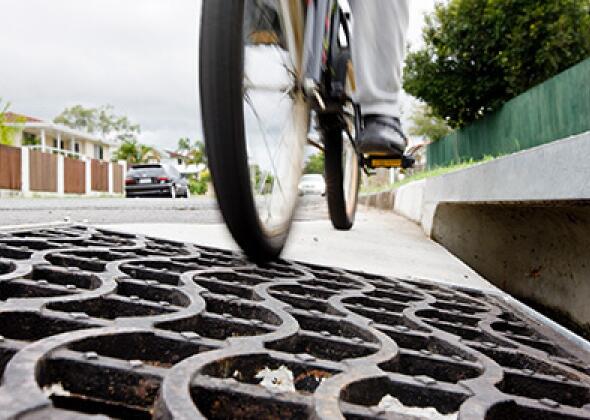

  • Bicycle Tyre Penetration Resistance Test
  • Hydraulic Flow Rate Test
  • Gas-tightness Test
  • Water-tightness Test

Load testing under Australian Standard AS3996 involves Type Testing of a unit to ensure the product achieves its Load Classification and Ultimate Limit State Design Load (kN).

Testing involves:

  • Five repetitions of the serviceability design load is applied to the unit in accordance with AS3996:2006 subclause 4.2.1.1, measurement of Ultimate Limit State Design Load (kN). Set must not exceed the Permanent Set and Deflection Limits (refer to Table 4.2 in AS3996:2006 subclause 4.2.1.2).
  • Followed immediately by one application of the ultimate limit state design load for a minimum of 30 seconds. The unit must sustain the above tests without visible cracking, collapse or other forms of structural failure.
Load Classifications

GATIC®’s complete range of metal Access Covers, Road Grates and Frames are designed and tested in accordance with the Australian Standard AS3996:2006 and the European standard EN124:1994. The following table provides an overview of loading classes, its typical use and loading capacity. Appropriate class for a cover or grate depends upon the place of installation.

Australian Standard - AS3996:2006

The Australian Standard, AS3996:2006 is GATIC®’s nominated standard for projects/applications within Australia. Type testing under AS3996:2006 requires the Access Covers to meet the Ultimate Limit State Design Load (kN) without exceeding the Permanent Set and Deflection Limits. Refer to AS3996:2006 subclause 4.2.1. for further details.

WSAA Specification, WSA PS-290 Access Covers for Water Supply and Sewerage to AS3996, details increased serviceability design and ultimate limit state designs loads as that detailed in Table 3.1 of AS3996, refer table below, for Classes B, D, E and F covers. Gatic® covers are designed and tested to the higher WSAA specification.

CLASS RATING TYPICAL USE NOMINAL WHEEL LOAD (kg) SERVICEABILITY DESIGN LOAD (kN) ULTIMATE LIMIT STATE DESIGN LOAD (kN)
AS3996 WSAA AS3996 WSAA AS3996 WSAA
A Footways and areas accessible only to pedestrians and pedal cyclists 330 330 6.7 6.7 10 10
B Footways that may be mounted by a vehicle or livestock, and light tracker paths 2670 2670 53 54 80 82
C Malls and pedestrians areas open to slow moving commercial vehicles 5000 5000 100 100 150 150
D Carriageways of roads and areas open to commercial vehicles 8000 7000 140 160 210 240
E General docks and aircraft pavements 13700 13700 267 280 400 420
F Docks and aircraft pavements subjects to high wheel loads 20000 20000 400 410 600 615
G Docks and aircraft pavements subject to very high wheel loads 30000 30000 600 600 900 900

NOTE: The above descriptions of classes of units reference to “wheel” should also be taken to include “dual wheels”. Norminal wheel loads are a guide only. Consideration should be be given to the type, size and pneumatic pressure of the load in application. A force of 1 kN is approximately equal to the weight of 100 kg.

EN124 : 1994 - European Standard Load Classification

The European Standard, EN124:1994 is GATIC®’s nominated standard for International projects/applications outside of Australia. Type testing under EN124:1994 requires the Access Covers to meet the Minimum Design Load (kN) without exceeding the Permissible Permanent Set values. Refer to EN124:1994 subclause 8.3. for further details.

CLASS RATING TYPICAL USE NOMINAL WHEEL LOAD (kg) SERVICIBILITY DESIGN LOAD (kN) ULTIMATE LIMIT STATE DESIGN LOAD (kN)
A Footways and areas accessible only to pedestrians and pedal cyclists. 330 10 15
B Footways that may be mounted by a vehicle or livestock, and light tracker paths 2670 83 125
C Malls and pedestrian areas open to slow moving commercial vehicles 5000 167 250
D Carriageways of roads and areas open to commercial vehicles 8000 267 400
E General docks and aircraft pavements 20000 400 600
F Docks and aircraft pavements subject to high wheel loads 30000 600 900
