600 SN10 SEWER MAX PIPE RRJX2.765M GREY

DN600 x 3m SN10 SewerMAX Pipe RRJ

Enquire    Download Product Sheet

Enquire



GR10600C

Overview
  • Australian Made
  • Installation Economics
  • Operation Efficiences
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth bore for hydraulic performance
  • Low embodied energy for environmental benefits
Additional Information Requires DN600 Rubber Ring Iplex Code: GERSEW600
Product Data Sheet Artboard View
Product Properties
Size 600MM
Rating SN10
Length 2.8M
Primary Material POLYPROPYLENE
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material SBR
Colour Grey outer corrugated wall with yellow inner liner
Minimum Cover Depth Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 17
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection Up to 2%
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Markings Iplex Pipelines, DN, SN10, PP, Date of Manufacture, SewerMAX®
Product Certifications
Mechanical Properties
Density - Specific Gravity 0.90 kg/m3
Yield Strain 6%
Yield Stress 28MPa
Tensile Modulus 28 MPa
Hardness Shore D 60
Poissons Ratio 0.45
Ring Bending Modulus - 3mins 1300MPa
Ring Bending Modulus - 50yrs 342 MPa
Thermal Properties
Coefficient of Thermal Expansion 15 x 10-5/℃
Thermal Conductivity 0.22W/m.K
Specific Heat 1920 J/kg/℃
Vicat Softening Temperature 95
Flammability Flammable
Dimensions
Size 600MM
Inner Diameter 596mm
Weight 75kg
Crate Qty 3
Crate Weight 201kg (67kg per crate)
Wall Thickness 3.5mm
Socket Depth 296mm
Max Socket Nominal OD 750mm
Witness Mark Detail 296mm
Profile Pitch 66.4mm

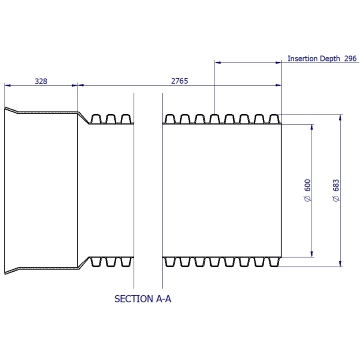

CAD PDF Artboard View
600 SN10 SEWER MAX PIPE RRJX2.765M GREY
Standards & Accreditations
Product Standard AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
Product Approvals and Appraisals StandardsMark Certification SMKP20603
Environmental Accreditation



Environmental Product Declaration - EPD
POP Documents


PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
