150 PN12 PRESS S2 PIPE RRJX6M BLUE MPVC CW RIEBER RING

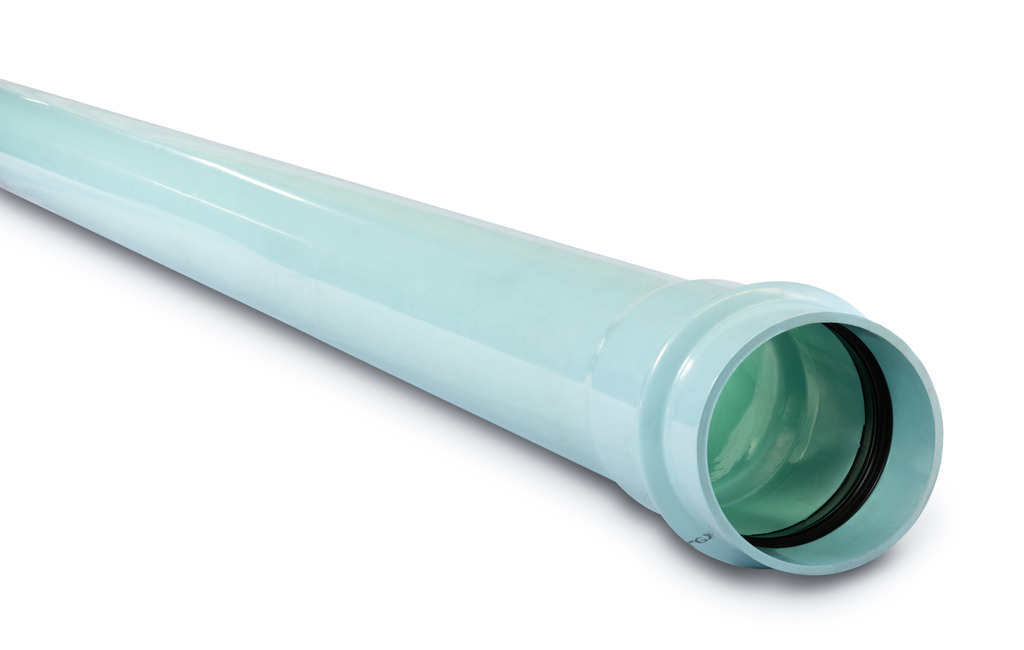

DN150 x 6m PN12.5 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDHR12150

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Data Sheet Artboard View
Product Properties
Size 150MM
Rating PN12.5
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646
Colour Blue
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 25
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1200KPa
Minimum Radius of Curvature 45m
Socket Deflection 1°
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.2m
Maximum Support Spacing of Pipe Vertical 2.0m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Product Certifications
Industry Specific Names Iplex Rhino®
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 38MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 3000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 17.5MPa
Ring Bending Modulus - 3mins 3000MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 7
Fire Index - Smoke Developed 9
Fire Index - Heat Evolved 2
Dimensions
Size 150MM
Inner Diameter 164.8mm
Weight 30kg
Crate Qty 18
Crate Weight 240kg
Wall Thickness 6.3mm
Socket Depth 161.6mm
Chamfer Detail 20mm
Witness Mark Detail 176mm
CAD PDF Artboard View
150 PN12 PRESS S2 PIPE RRJX6M BLUE MPVC CW RIEBER RING
Standards & Accreditations
Product Standard AS/NZS 4765
Product Approvals and Appraisals StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748
Environmental Accreditation Artboard View    Artboard View
POP Documents Artboard View
Warranty 1 Year

Learn more about our
PVC-M products

LEARN MORE ENQUIRE

PVC-M

Complimentary products you may be interested in...

product-slider-prev product-slider-next

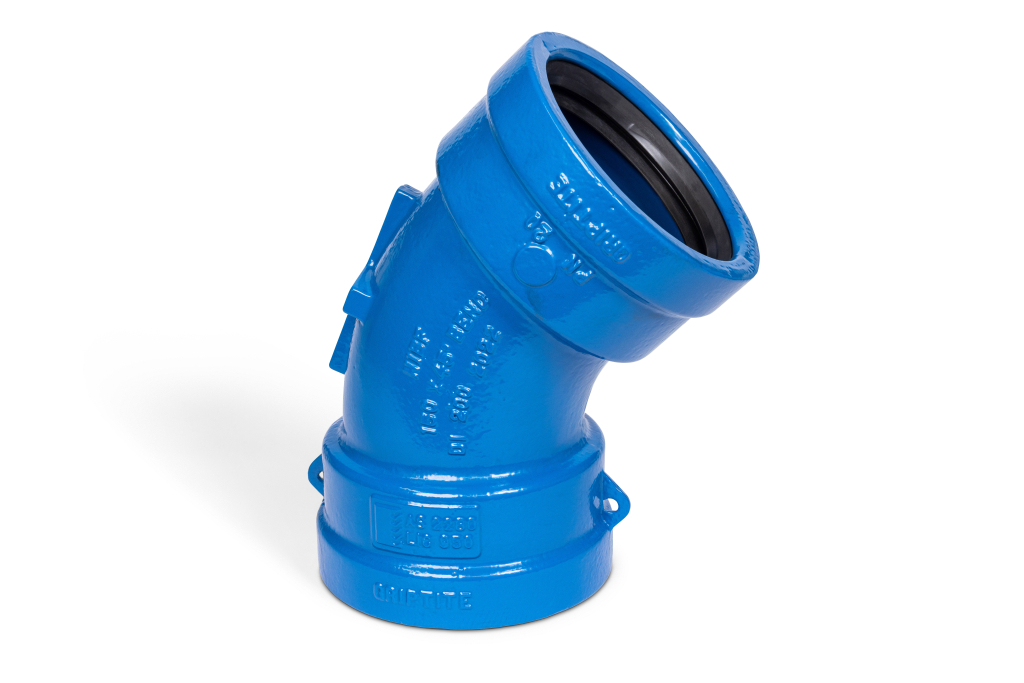

150X45 DI SL BEND S2 SOCNC PN20
