Products » PVC Non Pressure » DWV » 50 DWV VENT COWL
  1. Back to DWV
Back

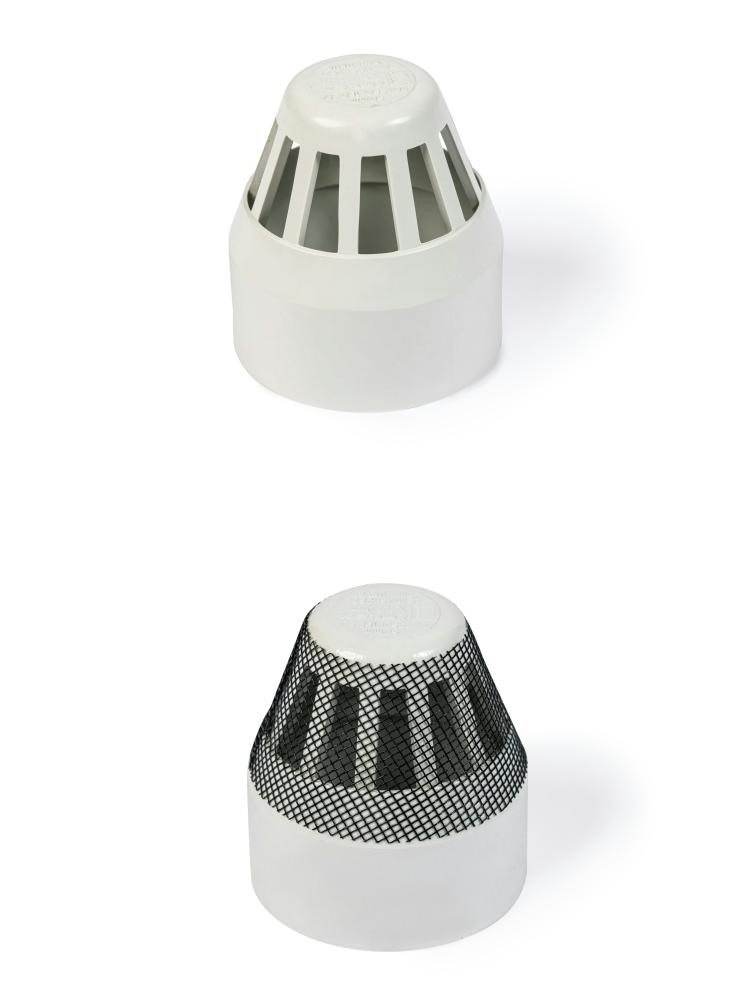

DN50 DWV PVC-U Vent Cowl SWJ

System:
PVC Non Pressure
Sub System:
DWV
Product Code:
D07950

Used for ventilation purposes; a cap on top of a vertical line

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
  • Leakage Elimination
Product Data Sheet
Link

Product properties

Size
50MM
Length
BLANK
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
76
Average Number of Joints per Litre - Iplex Primer
228
Cure Time for Solvent Weld Joints
24hrs
Allowable Operating Temperature - Degrees
60°C
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

Product dimensions

Size
50MM
Weight
0.04kg
Carton Qty
50
Carton Weight
2kg
50  DWV VENT COWL

Standards & Accreditations

Product Standard
AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"
Product Approvals and Appraisals
WaterMark Certification: WMKA1305
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"
POP Documents
this will be html linking to new website
Warranty
1 Year
