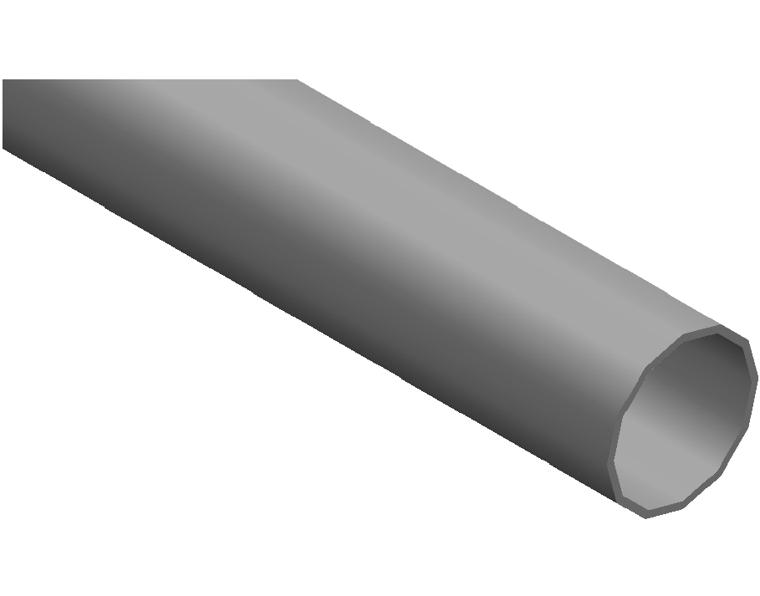

DN40 x 3m DWV PVC-U Pipe SWJ

Enquire

Enquire



DPSH40C

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
  • Leakage Elimination
Product Properties
Size 40MM
Length 3.0M
Primary Material PVC
UOM LENGTHS
Joint Type Plain end
Colour Light Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 108
Average Number of Joints per Litre - Iplex Primer 324
Cure Time for Solvent Weld Joints 24hrs
Allowable Operating Temperature - Degrees 60℃
Minimum Radius of Curvature 12m
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.0m
Maximum Support Spacing of Pipe Vertical 2.0m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Yield Stress 151.25MPa
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1
Dimensions
Size 40MM
Inner Diameter 39MM
Weight 1.28kg
Crate Qty 147
Crate Weight 188.16kg
Wall Thickness 2.0mm
Standards & Accreditations
Product Standard AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"
Product Approvals and Appraisals WaterMark Certification: WMKA1275
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"
Warranty 1 Year
