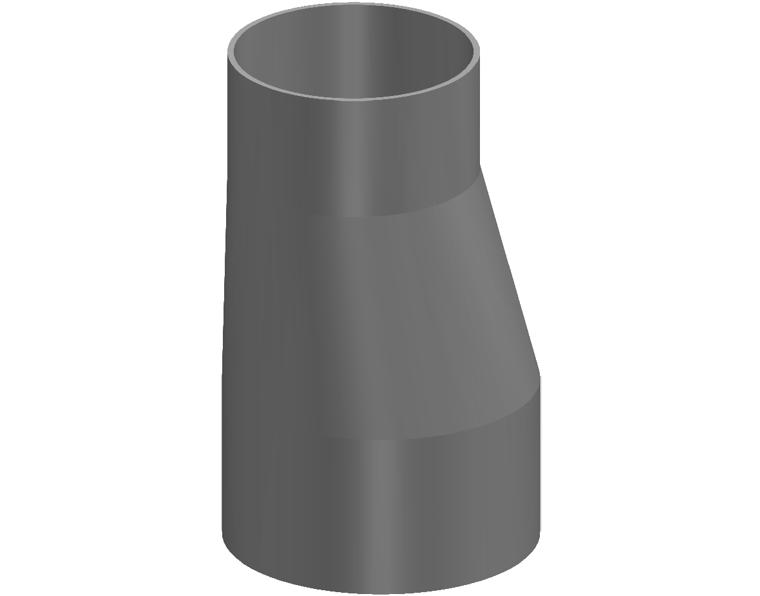

DN300 x DN225 DWV PVC-U Level Invert Taper MF SWJ

Enquire

Enquire



D072300225

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
  • Leakage Elimination
Product Properties
Size 300MM
Length BLANK
Primary Material PVC
UOM EACH
Joint Type SWJ
Colour Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 4
Average Number of Joints per Litre - Iplex Primer 12
Cure Time for Solvent Weld Joints 24hrs
Allowable Operating Temperature - Degrees 60℃
Unprotected UV Exposed 2 Years
Product Certifications

Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Yield Stress 151.25MPa
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1
Dimensions
Size 300MM
Weight 1.41kg
Carton Qty 2
Carton Weight 2.82kg
Standards & Accreditations
Product Standard AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"
Product Approvals and Appraisals WaterMark Certification: WMKA1305
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
