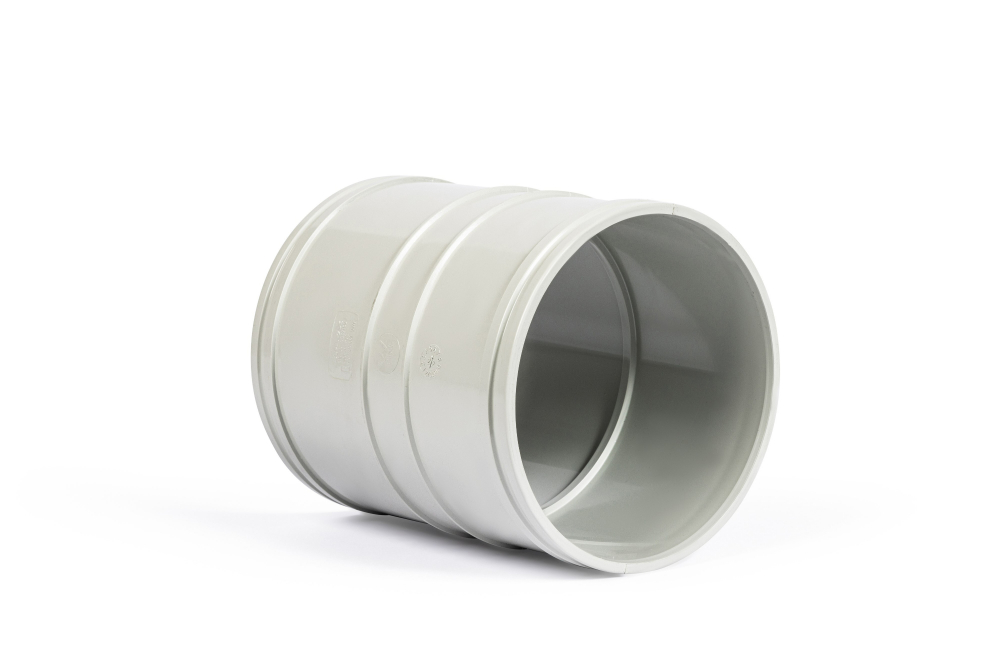

DN300 DWV PVC-U Plain Coupling FF SWJ
D057300
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size/Diameter
300MM
Primary Material
PVC
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
4
Average Number of Joints per Litre - Iplex Primer
12
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Unprotected UV Exposed
2 Years
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Yield Stress
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
1
Dimensions
Size/Diameter
300MM
Weight
4.4
Standards & Accreditations
Product Standard
AS/NZS 1260 'PVC-U pipes and fittings for drain, waste and vent applications'
Product Approvals and Appraisals
WaterMark Certification: WMKA1305
WSSA PA 1625
WSSA PA 1625
Environmental Accreditation
ApprovalMark - Compliance: Certificate No. BEP-PVC 0037
Warranty
1 Year
