225X150X45D DWV JUNC FF PL RED

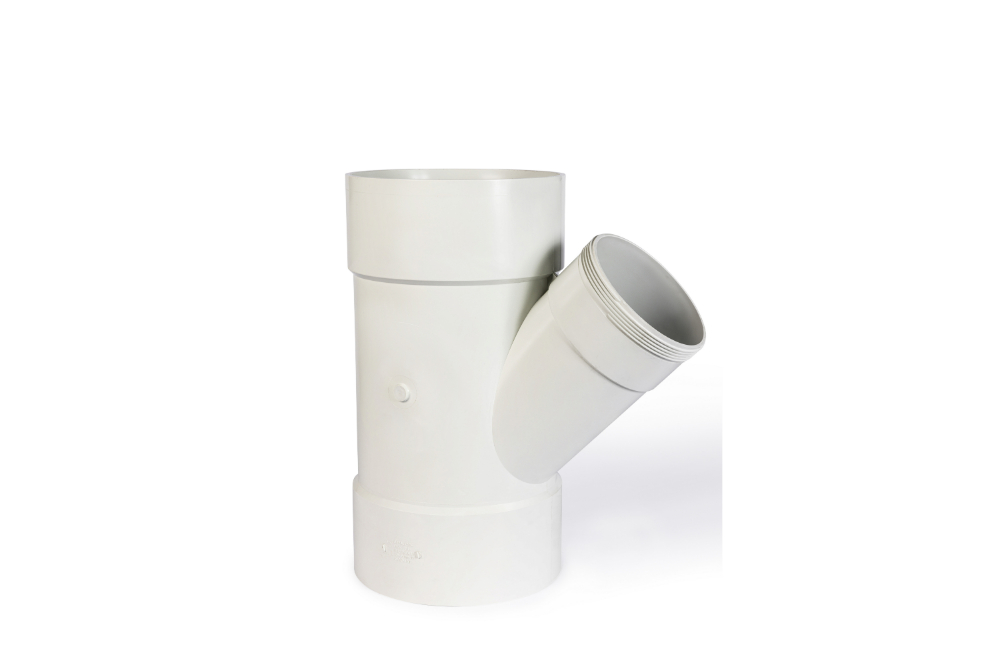

DN225 x DN150 x 45D DWV PVC-U Reducing Junction FF SWJ

Enquire

D025221545

Overview

Australian Made
BEP PVC - Manufacutred from Best Environmental Practice PVC
Installation Economics
Operation Efficiences
Corrosion Resistant
Treet root intrusion resistance
Leakage Elimination

Product Data Sheet View

Product Properties

Size001225

Length

Degree45

Primary Material003

UOMEA

Joint TypeSWJ

ColourGrey

Minimum Cover DepthWhere no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm

Average Number of Joints per Litre - Iplex Solvent6

Average Number of Joints per Litre - Iplex Primer18

Cure Time for Solvent Weld Joints24hrs

Allowable Operating Temperature - Degrees60Â°C

Unprotected UV Exposed2 Years

Mechanical Properties

Density - Specific Gravity1.47kg/m³

Ultimate Tensile Strength52MPa

Yield Strain5.50%

Compressive Strength66MPa

Tensile Modulus2750MPa

Hardness Shore D85

Poissons Ratio0.38

Ring Bending Modulus - 3mins3200MPa

Ring Bending Modulus - 50yrs1400MPa

Thermal Properties

Coefficient of Thermal Expansion7 x 10-5/oC

Thermal Conductivity0.138W/m.K

Specific Heat1047 J/kg/oC

Vicat Softening Temperature75oC

FlammabilityWill not support combustion

Fire Index - Ignitability8

Fire Index - Smoke Developed8

Fire Index - Heat Evolved1

Dimensions

Size 001225

Weight 4.67kg

Standards & Accreditations

Product StandardAS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"

Product Approvals and AppraisalsWaterMark Certification: WMKA1305
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"

Environmental AccreditationBest Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037

POP Documentsthis will be html linking to new website

Warranty1 Year
