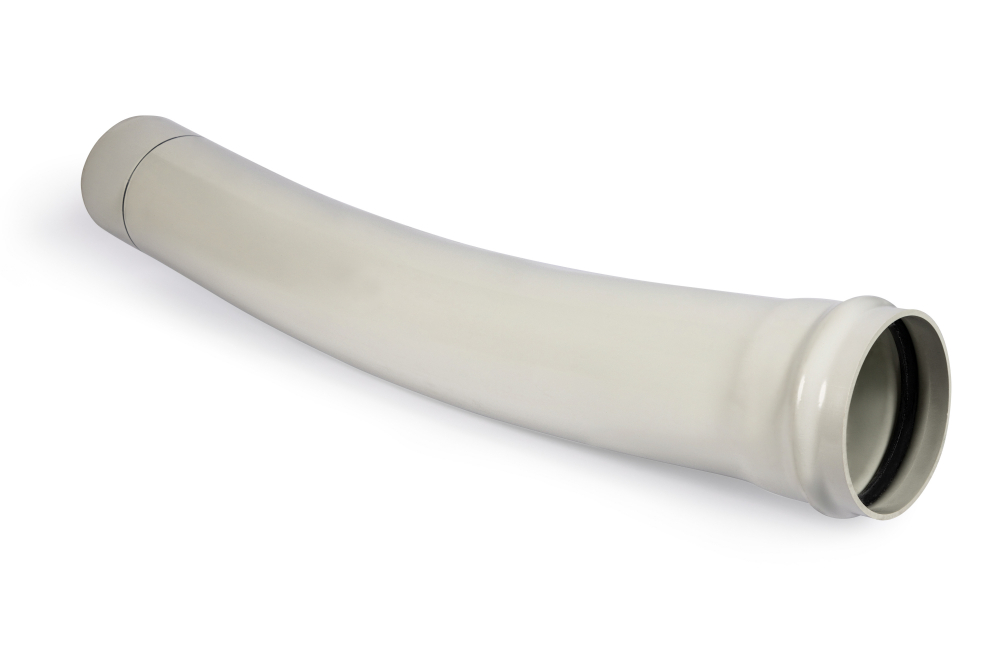

DN150 x 15D SN8 DWV PVC-U Bend 3M Radius MF RRJ

Enquire    Download Product Sheet

Enquire



DR1115015

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
  • Leakage Elimination
Product Data Sheet Artboard View
Product Properties
Size 150MM
Length BLANK
Degree 15
Primary Material PVC
UOM EACH
Joint Type RRJ
Rubber Ring Material EPDM
Colour Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 25
Cure Time for Solvent Weld Joints 24hrs
Allowable Operating Temperature - Degrees 60℃
Socket Deflection
Unprotected UV Exposed 2 Years
Product Certifications

Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Yield Stress 151.25MPa
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1
Dimensions
Size 150MM
Weight 4.23kg
150X15D SN8 DWV BEND MF 3M RADIUS C/W RRJ
Standards & Accreditations
Product Standard AS/NZS 1260
Product Approvals and Appraisals WaterMark Certification: WMKA1305
WSSA PA 1625
POP Documents

PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 Year
