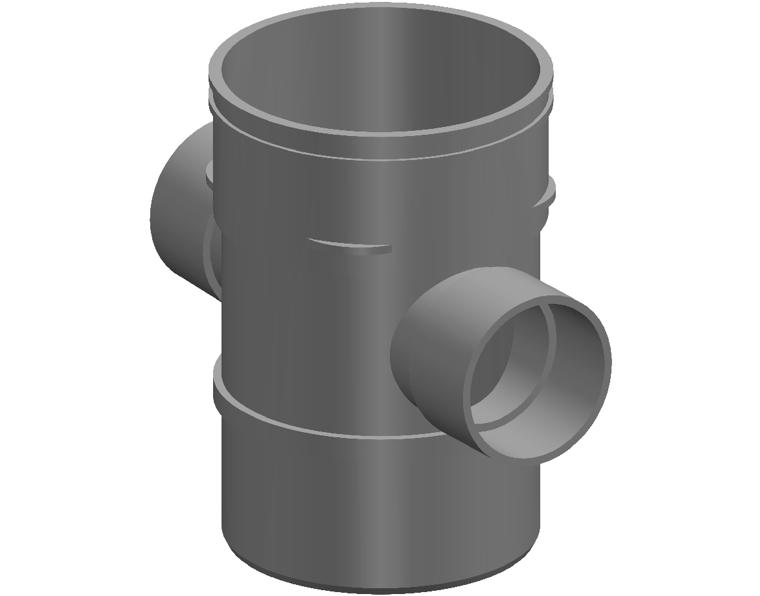

DN100 x DN50 x DN50 x 88D DWV PVC-U Riser Junction MF SWJ
Enquire Download Product Sheet
D043105588
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size
100MM
Length
BLANK
Degree
88
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
26
Average Number of Joints per Litre - Iplex Primer
78
Cure Time for Solvent Weld Joints
24hrs
Allowable Operating Temperature - Degrees
60℃
Unprotected UV Exposed
2 Years
Product Certifications
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Yield Stress
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1
Dimensions
Size
100MM
Weight
0.35kg
Carton Qty
24
Carton Weight
8.47kg
Standards & Accreditations
Product Standard
AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"
Product Approvals and Appraisals
WaterMark Certification: WMKA1305
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"
Environmental Accreditation
Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
Warranty
1 Year
