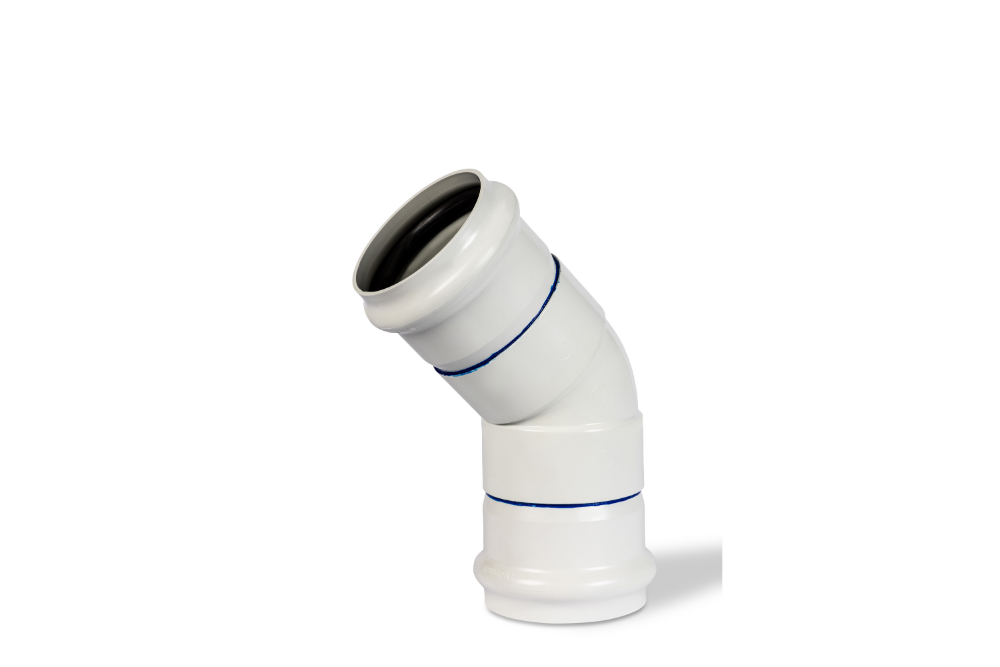

DN100 x 45D DWV PVC-U Bend FF RRJ x RRJ (Fab)

System:
PVC Non Pressure
Sub System:
DWV
Product Code:
DR0210045

Changes direction of a pipeline conveying non-pressure sewage and greywater by 45°

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
  • Leakage Elimination
Product Data Sheet
Link

Product properties

Size
100MM
Length
BLANK
Degree
45
Primary Material
PVC
UOM
EACH
Joint Type
RRJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
42
Cure Time for Solvent Weld Joints
24hrs
Allowable Operating Temperature - Degrees
60°C
Socket Deflection
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

Product dimensions

Size
100MM
Weight
0.95kg
Carton Qty
12
Carton Weight
11.4kg
100X45D DWV BEND FF PL CW 2XRRJ

Standards & Accreditations

Product Standard
AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"
Product Approvals and Appraisals
WaterMark Certification: WMKA1305
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
