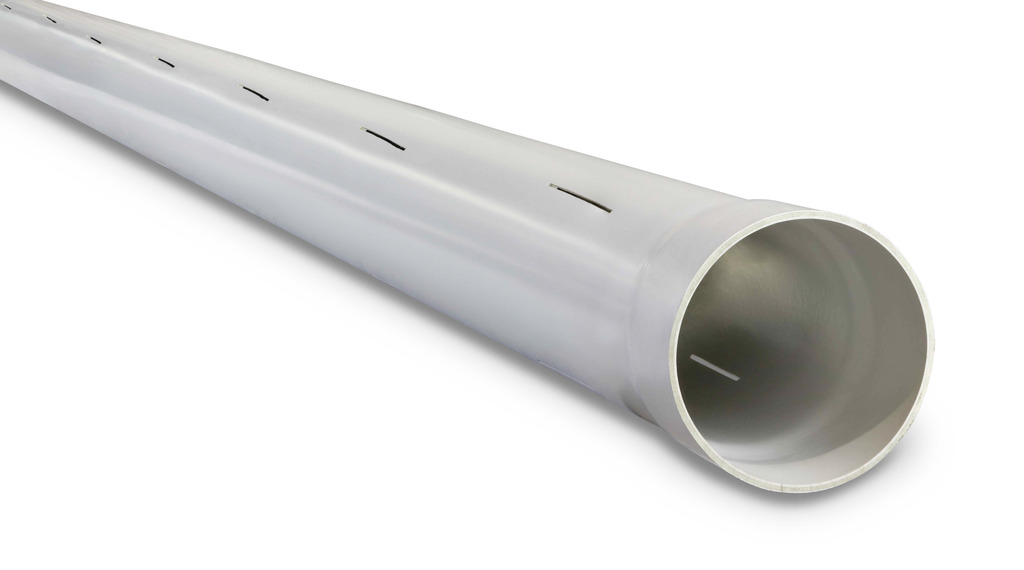

DN100 x 6m SN6 DWV PVC-U Slotted Pipe SWJ

Enquire

Enquire



DSMH100SL

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Tree root intrusion resistant
  • Leakage elimination
Product Properties
Size 100MM
Rating SN6
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type Solvent Weld Joint
Colour Light Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 26
Average Number of Joints per Litre - Iplex Primer 78
Cure Time for Solvent Weld Joints 24hrs
Allowable Operating Temperature - Degrees 60℃
Minimum Radius of Curvature 30m
Socket Deflection 0
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.2m
Maximum Support Spacing of Pipe Vertical 2.5m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names Drain Waste & Vent (DWV)
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Yield Stress 176MPa
Compressive Strength 66MPa
Tensile Modulus 3200MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 11MPa
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1
Dimensions
Size 100MM
Inner Diameter 104MM
Crate Qty 67
Crate Weight 672.68kg
Wall Thickness 3.0mm
Standards & Accreditations
Product Standard AS/NZS 1260
Product Approvals and Appraisals WaterMark Certification: WMKA1275
WSSA PA 1625
POP Documents


PIPA Guidelines & Notes (iplex.com.au)


Warranty 1 Year
