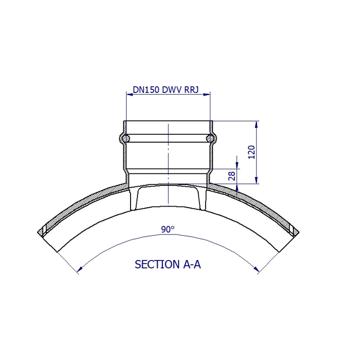

DN600 x dn150 x 90° BlackMax® Stormwater Saddle DWV RRJ (PVC Fab)

Enquire

Enquire



GWR50601590

Overview
  • Australian Made
  • Corrosion Resistant
  • Flexible
Additional Information Used for incoming lateral connection with PVC DWV Stormwater Drain pipe (Silt proof)
Product Properties
Size 600MM
Rating Non Pressure
Length BLANK
Degree 90
Primary Material PVC
UOM EACH
Joint Type RRJ
Rubber Ring Material Polyurethane
Colour White
Minimum Cover Depth SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection up to 2°
Markings Manufactures name and/or registered trademark > Nominal Size > PVC > Date of Manufacture > Place of Manufacture
Dimensions
Size 600MM
Weight 5
600X150X90D BLK MAX SW SADDLERED PVC FAB DWV RRJ
Standards & Accreditations
Product Standard AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
