GWR50371090

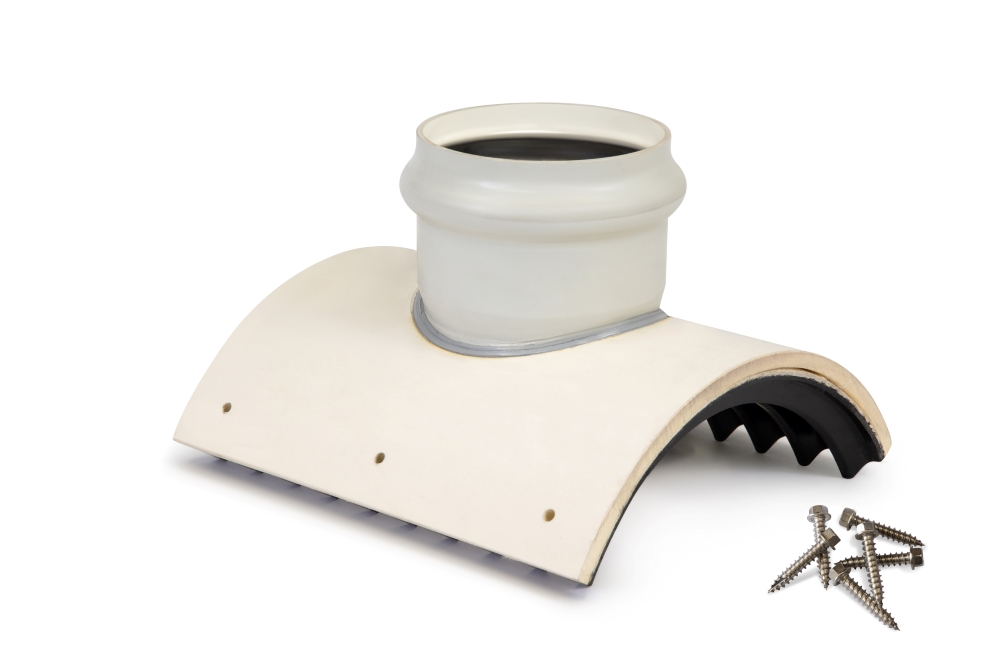

BlackMax® PVC Stormwater Saddle DN375 x DN100 x 90° DWV RRJ
Quick Menu
Overview
Product Properties
Size/Diameter
375 mm
Rating
Non Pressure
Degree
90°
Primary Material
PVC
Joint Type
RRJ
Rubber Ring Material
Polyurethane
Colour
White
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Markings
Iplex > BlackMax® > Stormwater Saddle > RRJ > DN375 x DN100 x 90° > PVC > Date of Manufacture > RELN > GWR50371090
Mechanical Properties
Density - Specific Gravity
1.45
kg/m3
Dimensions
Size/Diameter
375 mm
Weight
3 kg
Carton Quantity
2
Standards & Accreditations
Product Standard
AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
