225 SN8 BLK MAX PIPE RRJX3.005M

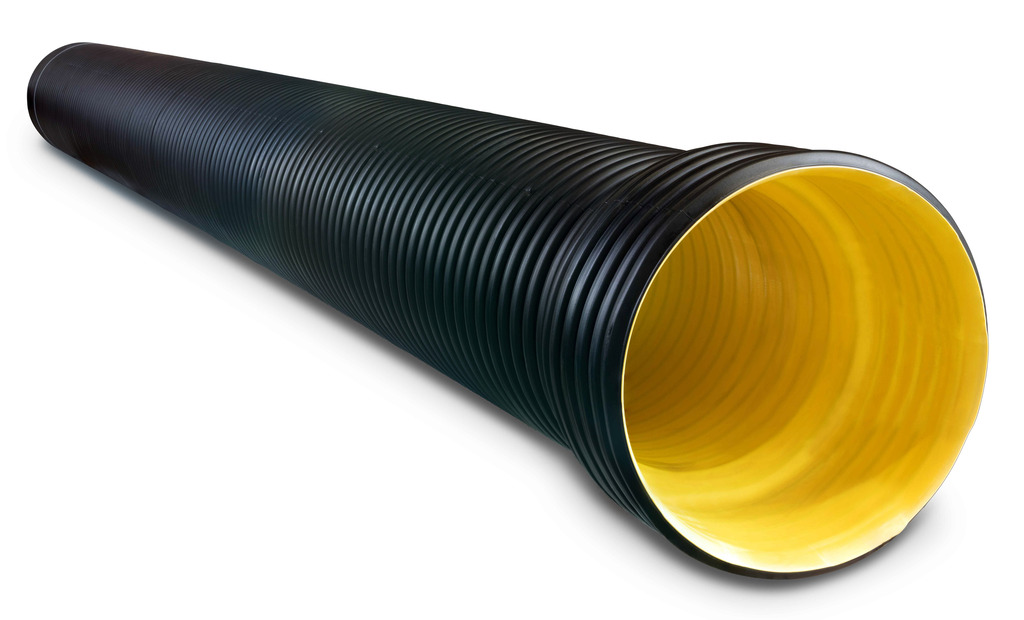

DN225 x 3m SN8 BlackMax® Drainage Pipe RRJ

Enquire    Download Product Sheet

Enquire



GR8225C

Overview
  • Australian Made
  • Installation Economics
  • Operation Efficiences
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth bore for hydraulic performance
  • Low embodied energy for environmental benefits
Additional Information Requires DN225 Rubber Ring Iplex Code: GERSEW225
Product Data Sheet Artboard View
Product Properties
Size 225MM
Rating SN8
Length 3.0M
Primary Material POLYPROPYLENE
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material SBR
Colour Black with yellow internal liner
Minimum Cover Depth Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 36
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Minimum Radius of Curvature 172m
Socket Deflection 2°
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.6m
Maximum Support Spacing of Pipe Vertical 3.2m
Markings Iplex Pipelines, DN, SN8, PP, Date of Manufacture, BlackMAX®
Product Certifications
Mechanical Properties
Density - Specific Gravity 0.90 kg/m3
Yield Strain 8%
Yield Stress 31MPa
Tensile Modulus 31MPa
Hardness Shore D 60
Poissons Ratio 0.45
Ring Bending Modulus - 3mins 1300MPa
Ring Bending Modulus - 50yrs 342 MPa
Thermal Properties
Coefficient of Thermal Expansion 15 x 10-5/℃
Thermal Conductivity 0.22 W/m.K
Specific Heat 1700 J/kg/℃
Vicat Softening Temperature 157℃
Flammability Flammable
Dimensions
Size 225MM
Inner Diameter 225mm
Weight 11kg
Crate Qty 8
Crate Weight 73kg
Wall Thickness 1.7mm
Socket Depth 135mm
Witness Mark Detail 135mm
Profile Pitch 25mm

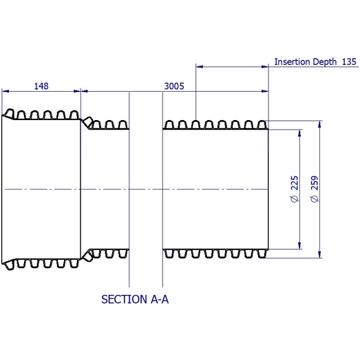

CAD PDF Artboard View
225 SN8 BLK MAX PIPE RRJX3.005M
Standards & Accreditations
Product Standard AS/NZS 5065 “Polyethylene and polypropylene pipes & fittings for drainage & sewerage applications”
Product Approvals and Appraisals StandardsMark Certification SMKP20603
Creep Ratio 3
Environmental Accreditation Artboard View
POP Documents

Warranty I Year
