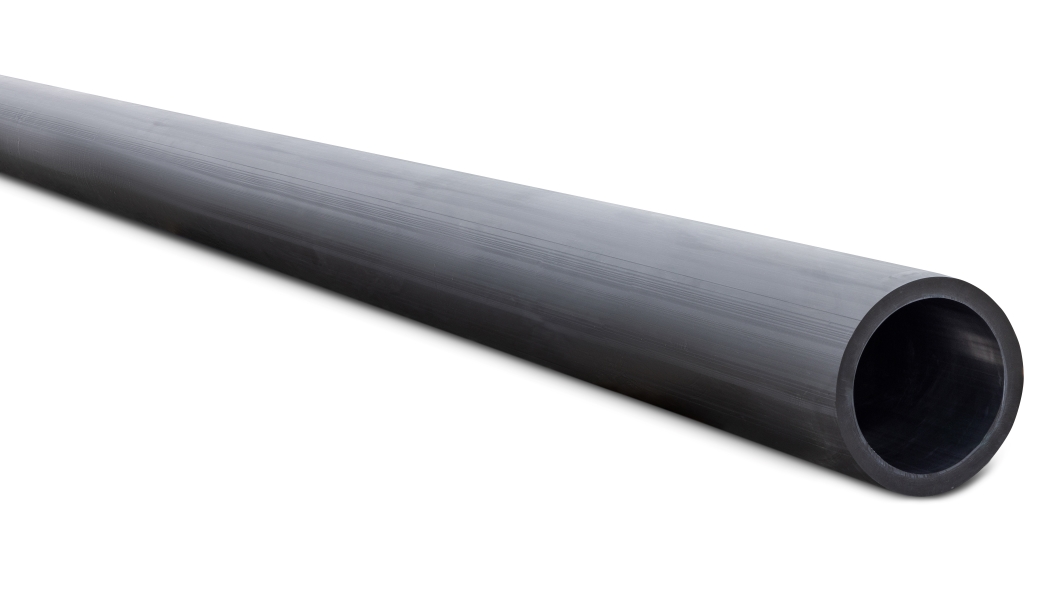

400 SDR11 POLY PE100 PIPEX12M BLK



Enquire

Enquire



POH16400M

Overview
Product Properties
Size 400MM
Length 12M
Primary Material POLYETHYLENE
UOM LENGTHS
Joint Type Electrofusion, compression, butt-weld, mechanical
Colour Black
Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius 1600 kPa @20℃
Minimum Radius of Curvature 15 (x DN) Ref: POP202 Nov2016
Unprotected UV Exposed 99.9% UV stable (black only)
Maximum Support Spacing of Pipe Graded 1.50m (If longer spans required, refer Iplex Sales Engineer)
Maximum Support Spacing of Pipe Vertical 3.00m
Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength N/A
Yield Strain 10%
Yield Stress 25 MPa
Compressive Strength 32MPa
Tensile Modulus 900 MPa
Hardness Shore D 63
Poissons Ratio 0.4
Design Stress 8 MPa
Thermal Properties
Coefficient of Thermal Expansion 1.8 x 10-4/℃
Thermal Conductivity 0.38W/m.K
Specific Heat 1.9 kJ/kg.K ℃
Vicat Softening Temperature 116℃
Flammability Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability 13
Fire Index - Smoke Developed 3
Fire Index - Spread of Flame 7
Fire Index - Heat Evolved 6
Dimensions
Size 400MM
ID 325.4mm
Wall Thickness 36.3mm
Standards & Accreditations
Product Standard Manufactured to AS/NZS 4130 from resin complounds complying with AS/NZS 4131
POP Documents PIPA Guidelines & Notes (iplex.com.au)
