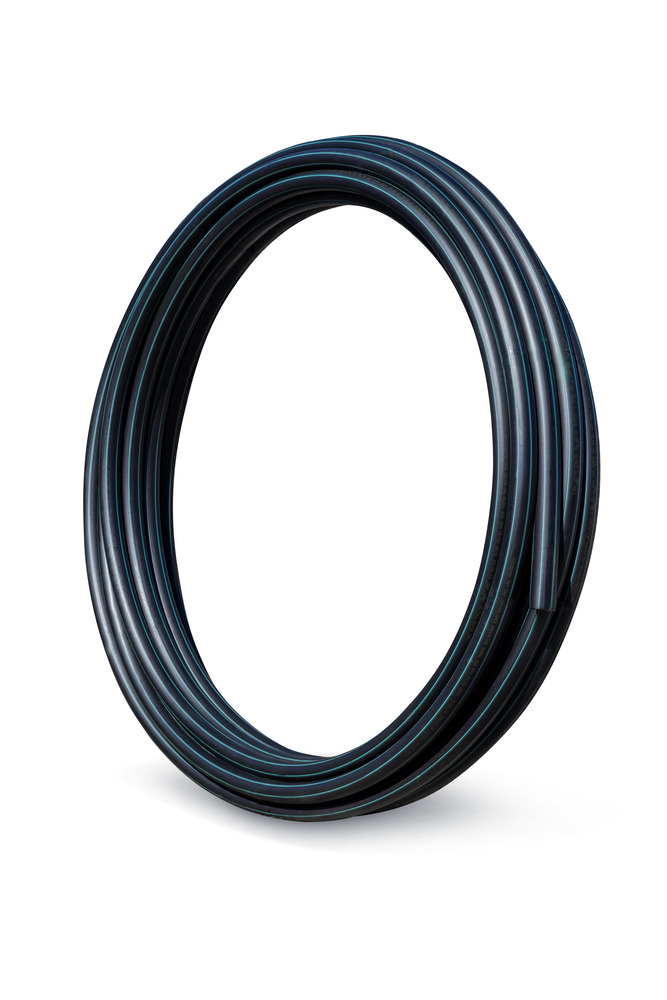

2.00IN GREENLINE IMPERIAL PE100 RURAL PIPE X 200M
PICH50200
Overview
Product Properties
Size
2IN
Length
200M
Primary Material
POLYETHYLENE
UOM
COIL
Joint Type
Electrofusion, compression, butt-weld, mechanical
Colour
Black with green stripe
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius
800 kPa @20℃
Minimum Radius of Curvature
Refer Iplex Sales Engineer
Unprotected UV Exposed
2 years in accordance with AS/NZS 2033:2008
Maximum Support Spacing of Pipe Graded
Refer Iplex Sales Engineer
Maximum Support Spacing of Pipe Vertical
Refer Iplex Sales Engineer
Industry Specific Names
poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength
N/A
Yield Strain
10%
Yield Stress
25 MPa
Compressive Strength
32MPa
Tensile Modulus
900 MPa
Hardness Shore D
63
Poissons Ratio
0.4
Design Stress
8 MPa
Ring Bending Modulus - 3mins
950MPa
Ring Bending Modulus - 50yrs
260MPa
Thermal Properties
Coefficient of Thermal Expansion
1.8 x 10-4/℃
Thermal Conductivity
0.38W/m.K
Specific Heat
1.9 kJ/kg.K ℃
Vicat Softening Temperature
116℃
Flammability
Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability
13
Fire Index - Smoke Developed
3
Fire Index - Spread of Flame
7
Fire Index - Heat Evolved
6
Dimensions
Size
2IN
Inner Diameter
50.9mm
Weight
96kg
Wall Thickness
2.9mm
Standards & Accreditations
Product Standard
Manufactured to AS/NZS 4130 from resin compounds complying with AS/NZS 4131
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
