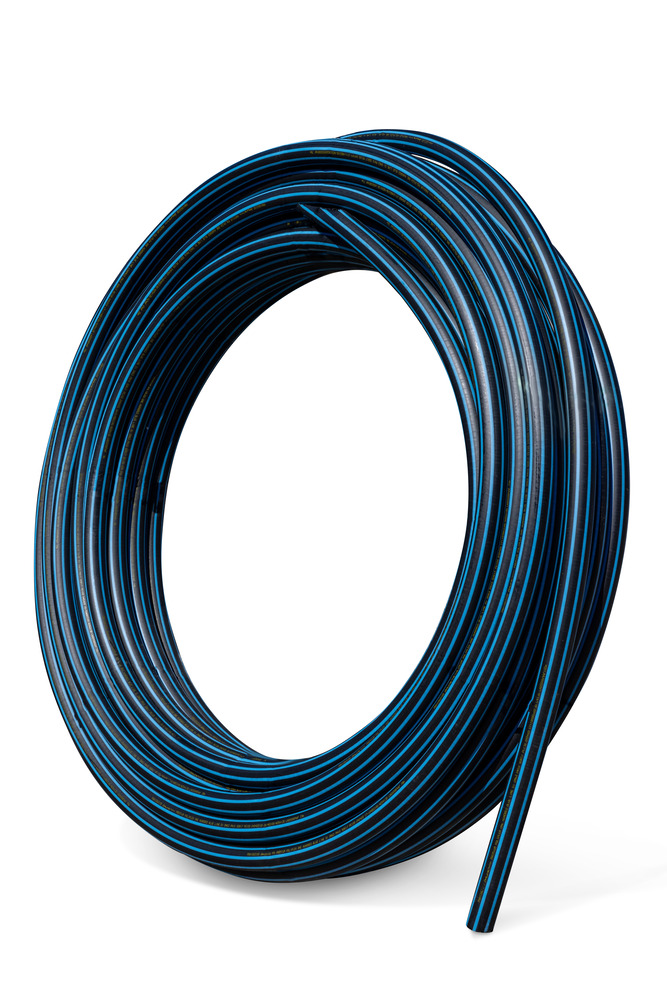

160 SDR13.6 POLY PE100 PIPEX12M BBL
PBH12160M
Overview
Product Properties
Size
160MM
Length
12M
Primary Material
POLYETHYLENE
UOM
LENGTHS
Joint Type
Electrofusion, compression, butt-weld, mechanical
Colour
Black with blue stripe
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius
1250 kPa @20℃
Minimum Radius of Curvature
21 (x DN) Ref: POP202 Nov2016
Unprotected UV Exposed
2 years in accordance with AS/NZS 2033:2008 "Installation of polyethylene pipe systems"
Maximum Support Spacing of Pipe Graded
1.00m (If longer spans required, refer Iplex Sales Engineer)
Maximum Support Spacing of Pipe Vertical
2.00m
Industry Specific Names
poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength
N/A
Yield Strain
10%
Yield Stress
25 MPa
Compressive Strength
32MPa
Tensile Modulus
900 MPa
Hardness Shore D
63
Poissons Ratio
0.4
Design Stress
8 MPa
Thermal Properties
Coefficient of Thermal Expansion
1.8 x 10-4/℃
Thermal Conductivity
0.38W/m.K
Specific Heat
1.9 kJ/kg.K ℃
Vicat Softening Temperature
116℃
Flammability
Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability
13
Fire Index - Smoke Developed
3
Fire Index - Spread of Flame
7
Fire Index - Heat Evolved
6
Dimensions
Size
160MM
Inner Diameter
135.9mm
Wall Thickness
11.8mm
Standards & Accreditations
Product Standard
Manufactured to AS/NZS 4130 from resin complounds complying with AS/NZS 4131
