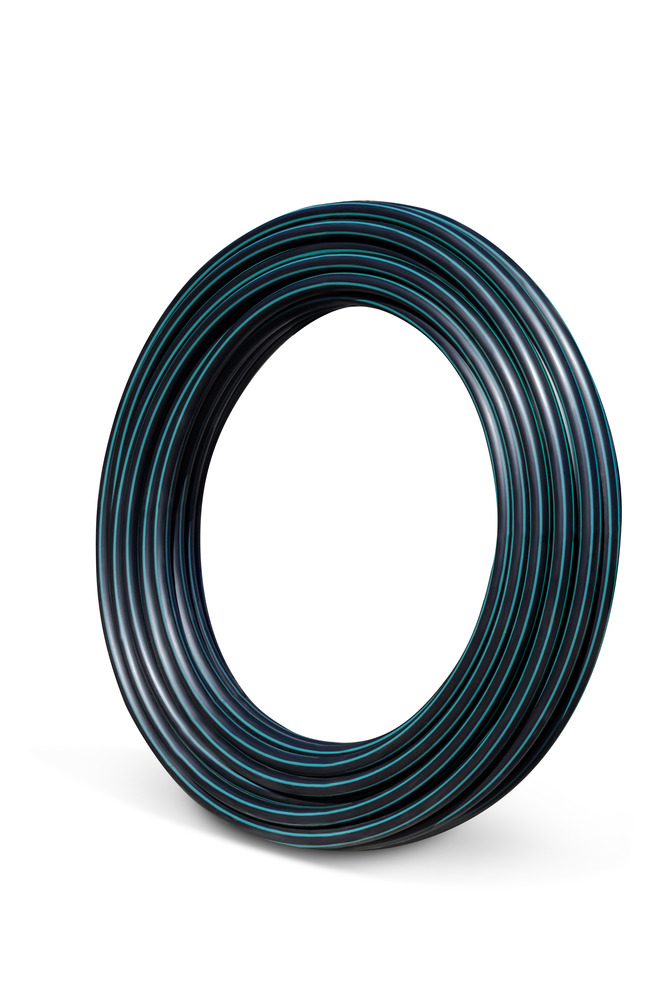

1.25IN GREENLINE IMPERIAL PE100 RURAL PIPE X 150M

Enquire

Enquire



PICH32150

Overview
Product Properties
Size 1-1/4IN
Length 150M
Primary Material POLYETHYLENE
UOM COIL
Joint Type Electrofusion, compression, butt-weld, mechanical
Colour Black with green stripe
Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius 800 kPa @20℃
Minimum Radius of Curvature Refer Iplex Sales Engineer
Unprotected UV Exposed 2 years in accordance with AS/NZS 2033:2008
Maximum Support Spacing of Pipe Graded Refer Iplex Sales Engineer
Maximum Support Spacing of Pipe Vertical Refer Iplex Sales Engineer
Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength N/A
Yield Strain 10%
Yield Stress 25 MPa
Compressive Strength 32MPa
Tensile Modulus 900 MPa
Hardness Shore D 63
Poissons Ratio 0.4
Design Stress 8 MPa
Ring Bending Modulus - 3mins 950MPa
Ring Bending Modulus - 50yrs 260MPa
Thermal Properties
Coefficient of Thermal Expansion 1.8 x 10-4/℃
Thermal Conductivity 0.38W/m.K
Specific Heat 1.9 kJ/kg.K ℃
Vicat Softening Temperature 116℃
Flammability Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability 13
Fire Index - Smoke Developed 3
Fire Index - Spread of Flame 7
Fire Index - Heat Evolved 6
Dimensions
Size 1-1/4IN
Inner Diameter 31.6mm
Weight 28kg
Wall Thickness 2mm
Standards & Accreditations
Product Standard Manufactured to AS/NZS 4130 from resin compounds complying with AS/NZS 4131
