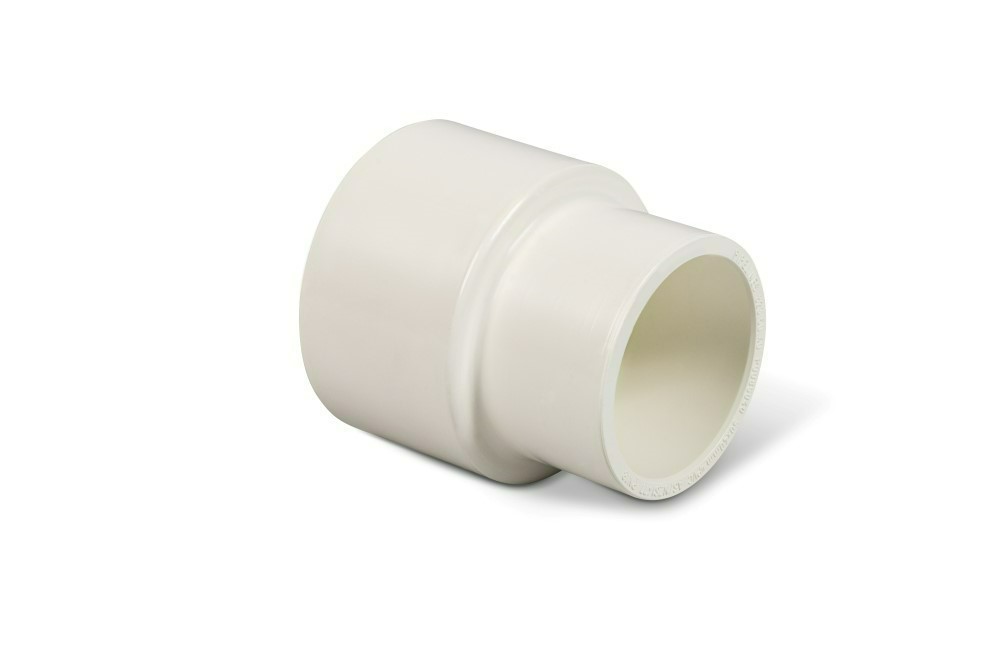

40X32 PN18 PRESS RED FFSOC CAT8

Enquire

P0084032

Overview

Australian Made
BEP PVC - Manufacutred from Best Environmental Practice PVC
Installation Economics
Operation Efficiences
Corrosion Resistant
Light weight
Electrically non conductive

Product Properties

Size 40MM

Length BLANK

Primary Material PVC

UOM EACH

Joint Type SWJ

Colour White

Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm

Cure Time for Solvent Weld Joints >15℃ 24hrs | 0-15℃ 48hrs

Mechanical Properties

Density - Specific Gravity 1.43 kg/m³

Ultimate Tensile Strength 52MPa

Yield Strain 5.50%

Yield Stress 176MPa

Compressive Strength 66MPa

Tensile Modulus 3200MPa

Hardness Shore D 85

Poissons Ratio 0.38

Design Stress 11MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138W/m.K

Specific Heat 1047 J/kg/℃

Vicat Softening Temperature 75℃

Flammability will not support combustion

Fire Index - Ignitability 7

Fire Index - Smoke Developed 9

Fire Index - Heat Evolved 2

Dimensions

Size 40MM

Carton Qty 70

Standards & Accreditations

Product Standard AS/NZS 1477 "PVC pipes and fittings for pressure applications"

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 year
