Products » PVC Pressure System » PVC-U » 100X45D PN15 PRESS ELBOW FFCAT10
  1. Back to PVC-U
Back

System:
PVC Pressure System
Sub System:
PVC-U
Product Code:
P010100

Changes direction of a pipeline conveying fluids in pressure applications by 45°

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive

Product properties

Size
100MM
Length
BLANK
Degree
45
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
White
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Cure Time for Solvent Weld Joints
>15° 24hrs | 0-15° 48hrs

Mechanical properties

Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
11MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2

Product dimensions

Size
100MM
Carton Qty
6

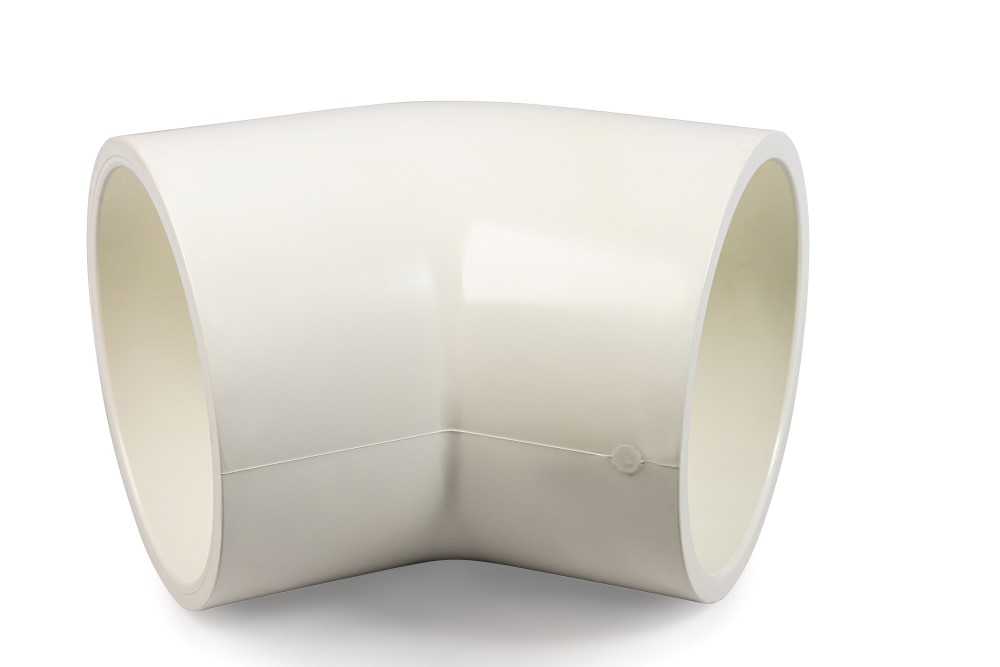

100X45D PN15 PRESS ELBOW FFCAT10

Standards & Accreditations

Product Standard
AS/NZS 1477
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 year
