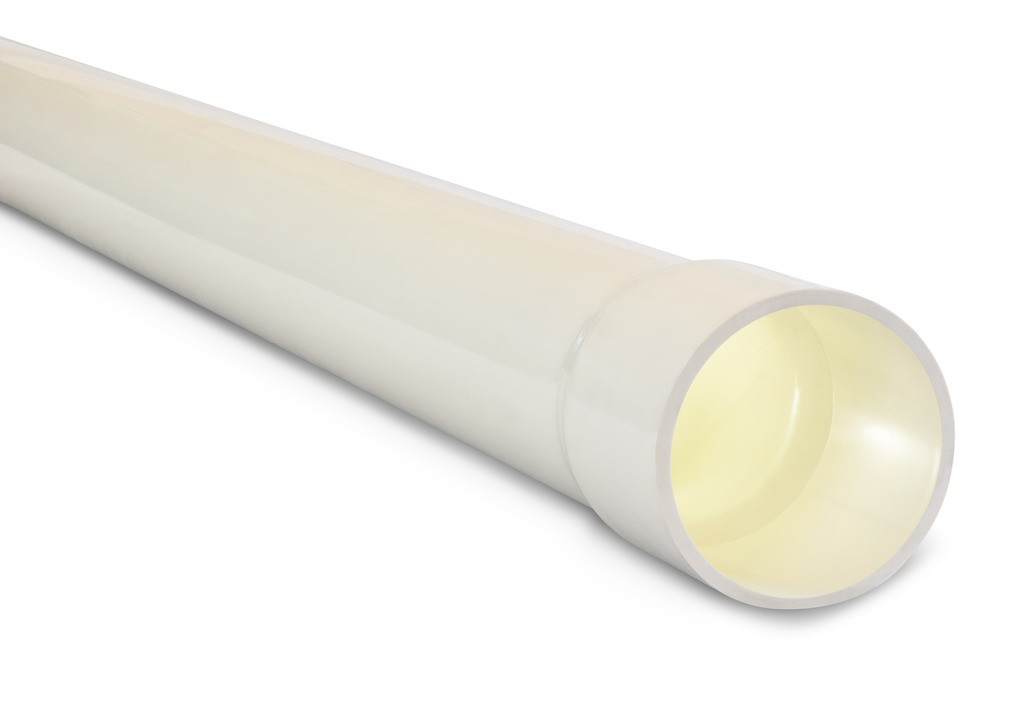

100 PN12 PRESS S1 PIPE SWJX6M UPVC

Enquire

Enquire



PPSO12100

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Properties
Size 100MM
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type Solvent Weld Joint
Colour White
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Cure Time for Solvent Weld Joints >15℃ 24hrs | 0-15℃ 48hrs
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1200kPa
Minimum Radius of Curvature 30m
Socket Deflection 0
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.2m
Maximum Support Spacing of Pipe Vertical 2.0m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity 1.43 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Yield Stress 176MPa
Compressive Strength 66MPa
Tensile Modulus 3200MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 11MPa
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1045 J/kg/℃
Vicat Softening Temperature >70℃
Flammability Will not support combustion
Fire Index - Ignitability 7
Fire Index - Smoke Developed 9
Fire Index - Heat Evolved 2
Dimensions
Size 100MM
Carton Qty 51
Chamfer Detail 123
Standards & Accreditations
Product Standard AS/NZS 1477 "PVC pipes and fittings for pressure applications"
Environmental Accreditation Artboard View    Artboard View
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 year
