225 PN16 PRESS S2 PIPE RRJX6M BLUE OPVC

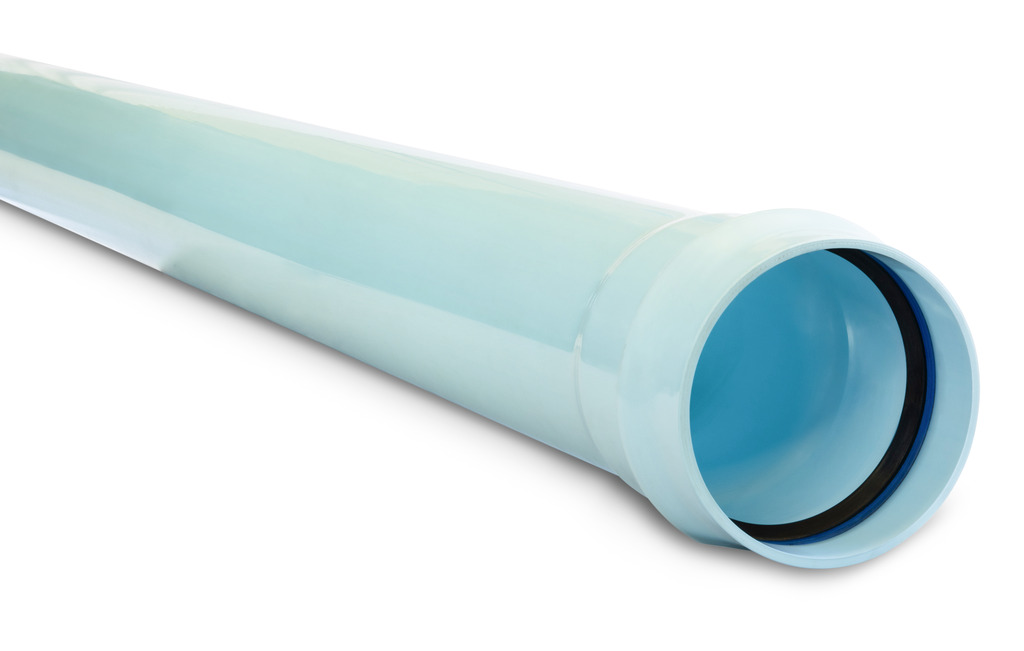

DN225 x 6m PN16 Apollo Blue Series 2 PVC-O Pipe Rieber RRJ



Enquire

Enquire



PDRA16225

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Excellent toughness and ductility
  • Large internal diameter and smooth bore
Product Data Sheet Artboard View
Product Properties
Size 225MM
Rating PN16
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646
Colour Blue
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 14
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1600kPa
Minimum Radius of Curvature 67.5m
Socket Deflection
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.5m
Maximum Support Spacing of Pipe Vertical 3.0m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names ApolloBLUE® Premium
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 3200MPa
Hardness Shore D 85
Poissons Ratio 0.45
Design Stress 28MPa
Ring Bending Modulus - 3mins 4000MPa
Ring Bending Modulus - 50yrs 1800MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1045 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 7
Fire Index - Smoke Developed 9
Fire Index - Heat Evolved 2
Dimensions
Size 225MM
ID 244.7 mm
Weight 53kg
Crate Qty 8
Crate Weight 424kg
Wall Thickness 7.1 mm
Socket Depth 202mm
Standards & Accreditations
Product Standard AS/NZS 4441
Product Approvals and Appraisals Artboard View
Environmental Accreditation Artboard View Artboard View Artboard View
POP Documents


PIPA Guidelines & Notes (iplex.com.au)


Warranty 1 Year
