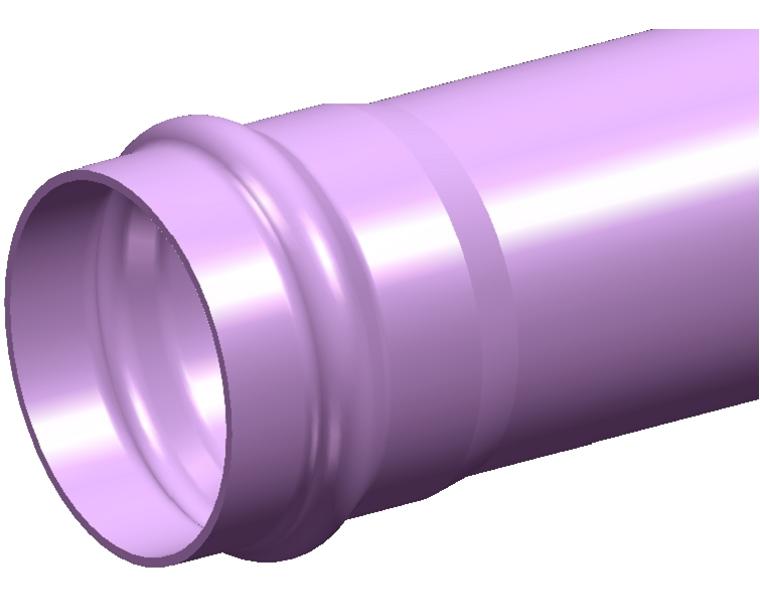

DN225 x 6m PN12.5 Apollo Purple Series 2 PVC-O Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-O
Product Code:
PDRAL12225

Used for above or below ground applications to convey recycled water in pressure applications

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Excellent Toughness and Ductility
  • Large Internal Diameter and Smooth bore
Product Data Sheet
Link

Product properties

Size
225MM
Rating
PN12.5
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
EPDM
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
14
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1200KPa
Minimum Radius of Curvature
68m
Socket Deflection
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
4000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
28MPa
Ring Bending Modulus - 3mins
4000MPa
Ring Bending Modulus - 50yrs
1800MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
2
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
2

Product dimensions

Size
225MM
ID
244.7mm
Weight
53kg
Crate Qty
8
Crate Weight
424kg
Wall Thickness
7.1mm
Socket Depth
202mm
Max Socket Nominal OD
306.2mm
225 PN12.5 PRESS S2 PIPE RRJX6M LILAC OPVC
