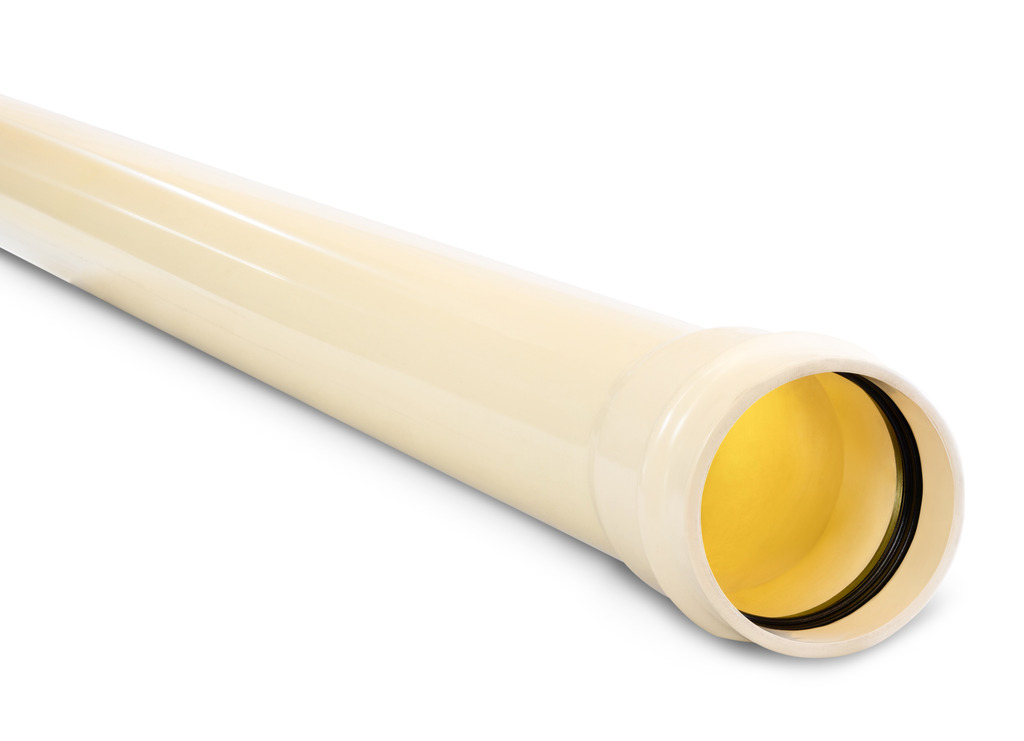

DN200 x 6m PN16 Apollo Cream Series 2 PVC-O Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-O
Product Code:
PDRAC16200

Sewerage

Features

  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Excellent toughness and ductility
  • Large internal diameter and smooth bore
Product Data Sheet
Link

Product properties

Size
200MM
Rating
PN16
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour
Cream
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1600kPa
Minimum Radius of Curvature
60m
Socket Deflection
1°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
ApolloBLUE® Premium

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.45
Design Stress
28MPa
Ring Bending Modulus - 3mins
4000MPa
Ring Bending Modulus - 50yrs
1800MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10??/°C
Thermal Conductivity
0.138 W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2

Product dimensions

Size
200MM
ID
219.1 mm
Weight
45kg
Crate Qty
10
Crate Weight
450kg
Wall Thickness
6.4 mm
Socket Depth
189mm
Max Socket Nominal OD
274.5mm
200 PN16 PRESS S2 PIPE RRJX6M CREAM OPVC
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 4441 "Oriented PVC (PVC-O) pipes for pressure applications"
Product Approvals and Appraisals
StandardsMark Certification SMKP20188
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
