300 PN12 PRESS S2 PIPE RRJX6M CREAM MPVC CW RIEBER RING

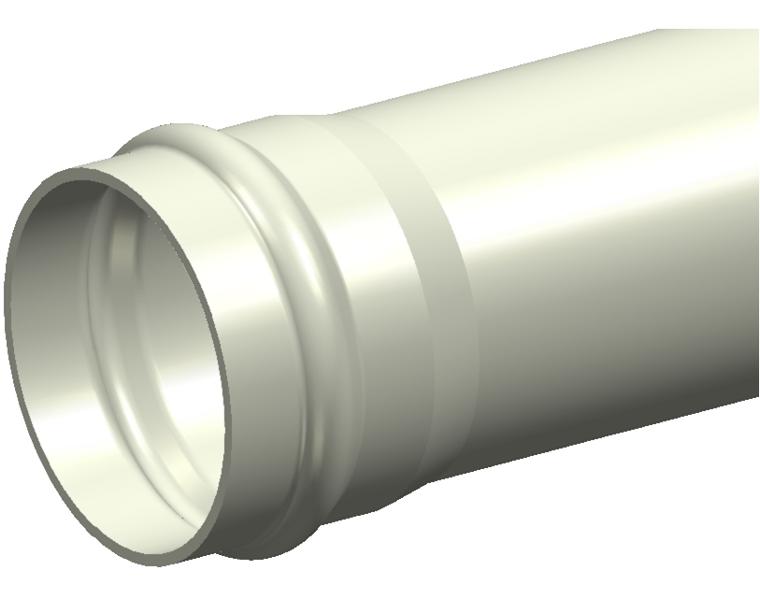

DN300 x 6m PN12.5 Cream Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDHRC12300

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet Artboard View
Product Properties
Size 300MM
Rating PN12.5
Length 6.0M
Primary Material PVC
UOM LENGTHS
Rubber Ring Material EPDM
Colour Cream
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 10
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1200KPa
Minimum Radius of Curvature 90m
Socket Deflection 1°
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 38MPa
Yield Strain 5.50%
Compressive Strength 48MPa
Tensile Modulus 3000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 17.5MPa
Ring Bending Modulus - 3mins 3000MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 2
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 2
Dimensions
Size 300MM
Inner Diameter 321mm
Weight 114kg
Crate Qty 6
Crate Weight 684kg
Wall Thickness 12.2mm
Socket Depth 219.2mm
Chamfer Detail 30mm
Witness Mark Detail 237mm
CAD PDF Artboard View
300 PN12 PRESS S2 PIPE RRJX6M CREAM MPVC CW RIEBER RING
Standards & Accreditations
Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
Product Approvals and Appraisals StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748
Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
POP Documents https://www.iplex.com.au/resources-and-tools/pipa-guidelines-and-notes/
Warranty 1 Year
