250 PN12 PRESS S2 PIPE RRJX6M BLUE MPVC CW RIEBER RING

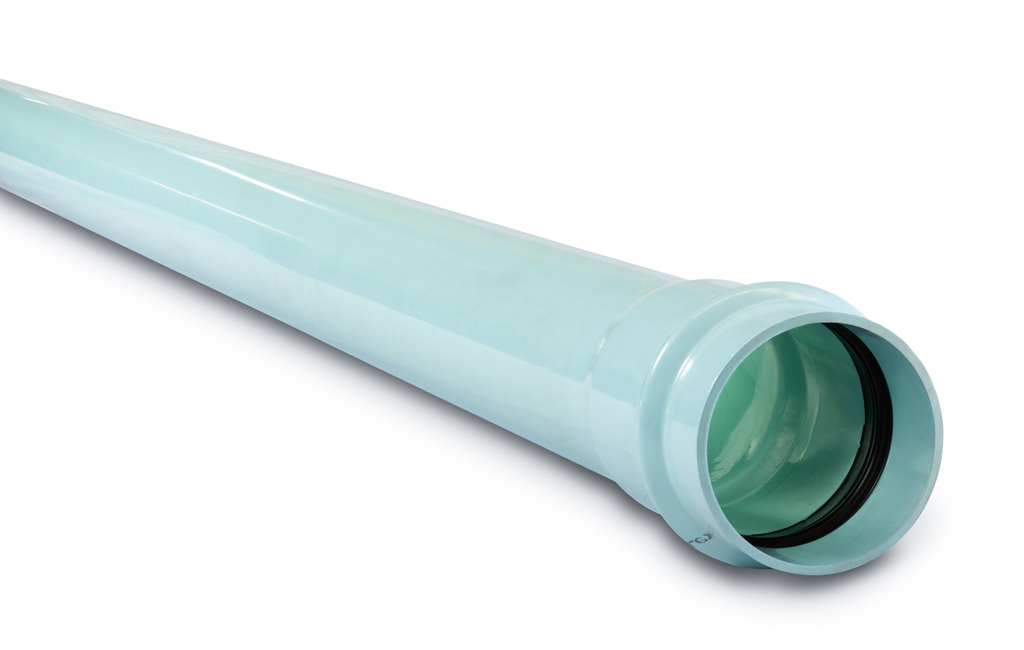

DN250 x 6m PN12.5 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ



Enquire

Enquire



PDHR12250

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Data Sheet Artboard View
Product Properties
Size 250MM
Rating PN12.5
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour Blue
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 12
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1200KPa
Minimum Radius of Curvature 75m
Socket Deflection
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.5m
Maximum Support Spacing of Pipe Vertical 3.0m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names Iplex Rhino®
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 38MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 3000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 17.5MPa
Ring Bending Modulus - 3mins 3000MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 7
Fire Index - Smoke Developed 9
Fire Index - Heat Evolved 2

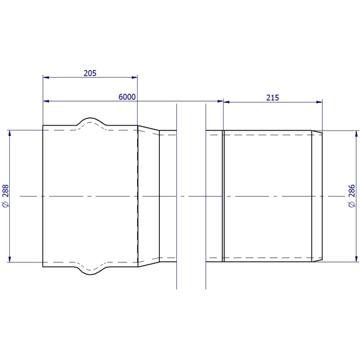

Dimensions
Size 250MM
ID 266.0mm
Weight 78kg
Crate Qty 8
Crate Weight 624kg
Wall Thickness 10.1mm
Socket Depth 205.3mm
Chamfer Detail 25mm
Witness Mark Detail 220mm
Standards & Accreditations
Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
Product Approvals and Appraisals Artboard View
Environmental Accreditation Artboard View
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
