150 PN16 PRESS S2 PIPE RRJX6M CREAM MPVC CW RIEBER RING

DN150 x 6m PN16 Cream Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDHRC16150

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet Artboard View
Product Properties
Size 150MM
Rating PN16
Length 6.0M
Primary Material PVC
UOM LENGTHS
Rubber Ring Material EPDM
Colour Cream
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 25
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1600kPa
Minimum Radius of Curvature 45m
Socket Deflection 1°
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 38MPa
Yield Strain 5.50%
Compressive Strength 48MPa
Tensile Modulus 3000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 17.5MPa
Ring Bending Modulus - 3mins 3000MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 2
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 2
Dimensions
Size 150MM
Inner Diameter 160.8mm
Weight 40kg
Crate Qty 18
Crate Weight 720kg
Wall Thickness 8.3mm
Socket Depth 161.6mm
Chamfer Detail 20mm
Witness Mark Detail 176mm

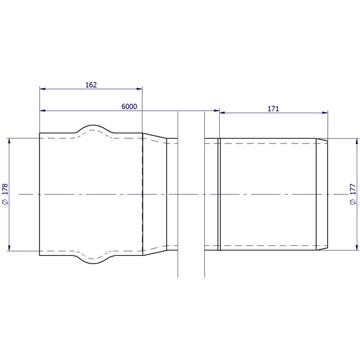

CAD PDF Artboard View
150 PN16 PRESS S2 PIPE RRJX6M CREAM MPVC CW RIEBER RING
Standards & Accreditations
Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
Product Approvals and Appraisals StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748
Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
POP Documents https://www.iplex.com.au/resources-and-tools/pipa-guidelines-and-notes/
Warranty 1 Year
