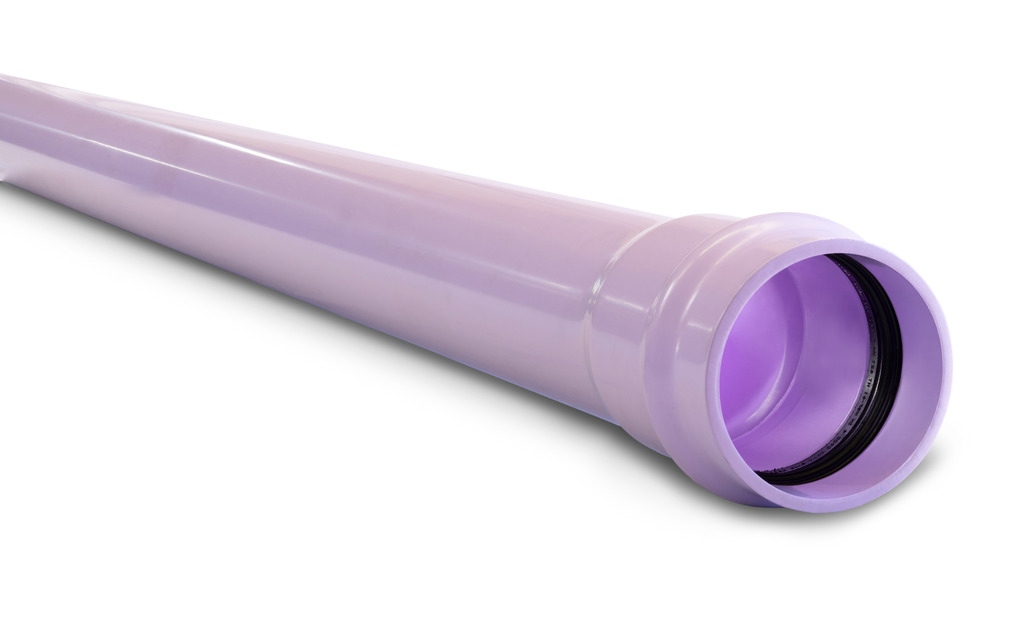

DN100 x 6m PN16 Purple Rhino Series 2 PVC-M Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-M
Product Code:
PDHRL16100

Used for above or below ground applications to convey recycled water in pressure applications

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet
Link

Product properties

Size
100MM
Rating
PN16
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Rubber Ring Material
EPDM
Colour
Purple
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
42
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1600kPa
Minimum Radius of Curvature
30m
Socket Deflection
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
38MPa
Yield Strain
5.50%
Compressive Strength
48MPa
Tensile Modulus
3000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
17.5MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
2
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
2

Product dimensions

Size
100MM
ID
110.3mm
Weight
18.41kg
Crate Qty
36
Crate Weight
662.80kg
Wall Thickness
5.7mm
Socket Depth
141.4mm
Max Socket Nominal OD
121.9mm

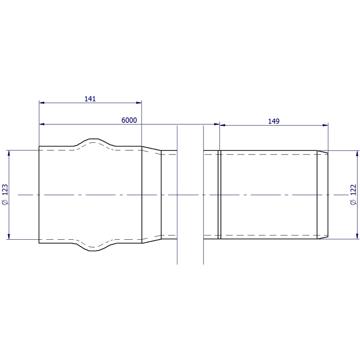

Chamfer Detail
17mm
Witness Mark Detail
154mm
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
POP Documents
View POP Documents
Warranty
1 Year
