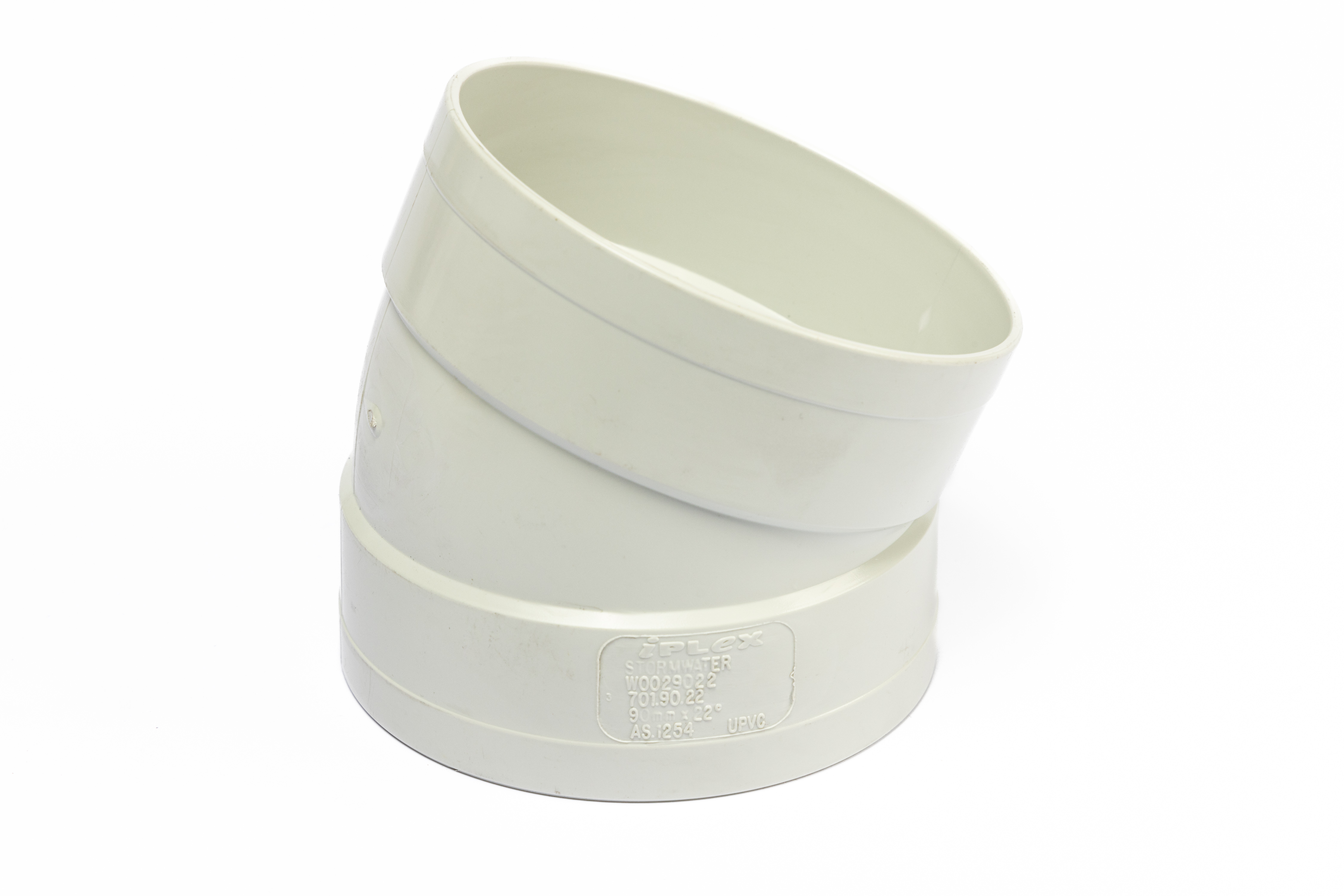

DN90 x 22.5D Stormwater PVC-U Bend FF SWJ

Enquire    Download Product Sheet

Enquire



W0029022

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance

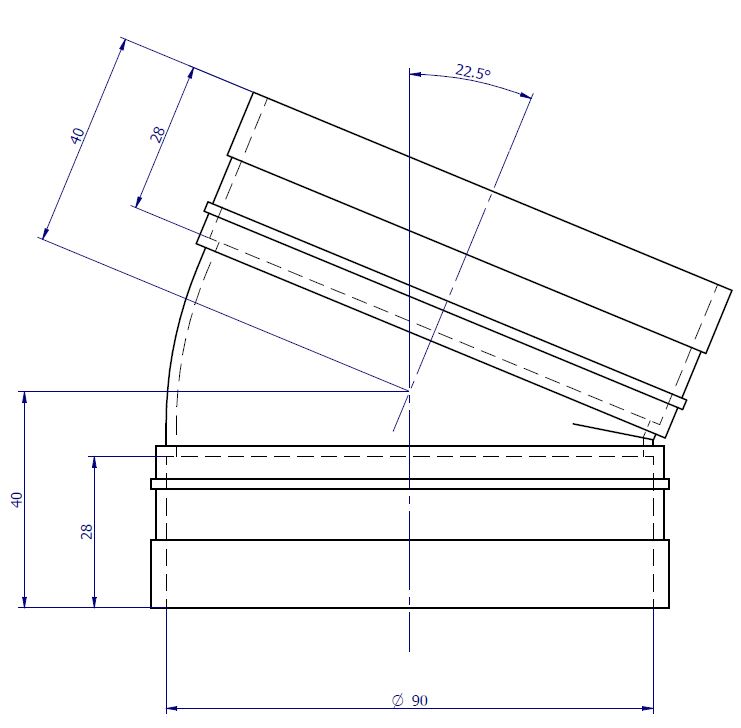

Product Data Sheet Artboard View
Product Properties
Size 90MM
Rating SN2
Length BLANK
Degree 22
Primary Material PVC
UOM EACH
Joint Type SWJ
Colour Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 60
Average Number of Joints per Litre - Iplex Primer 180
Cure Time for Solvent Weld Joints 24hrs
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 151.25MPa
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1
Dimensions
Size 90MM
Inner Diameter 90mm
Weight 0.07kg
Carton Qty 110
Carton Weight 7.7kg
Wall Thickness 1.9mm
Socket Depth 28mm
90X22.5D SW BEND FF
Standards & Accreditations
Product Standard AS/NZS 1254
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
