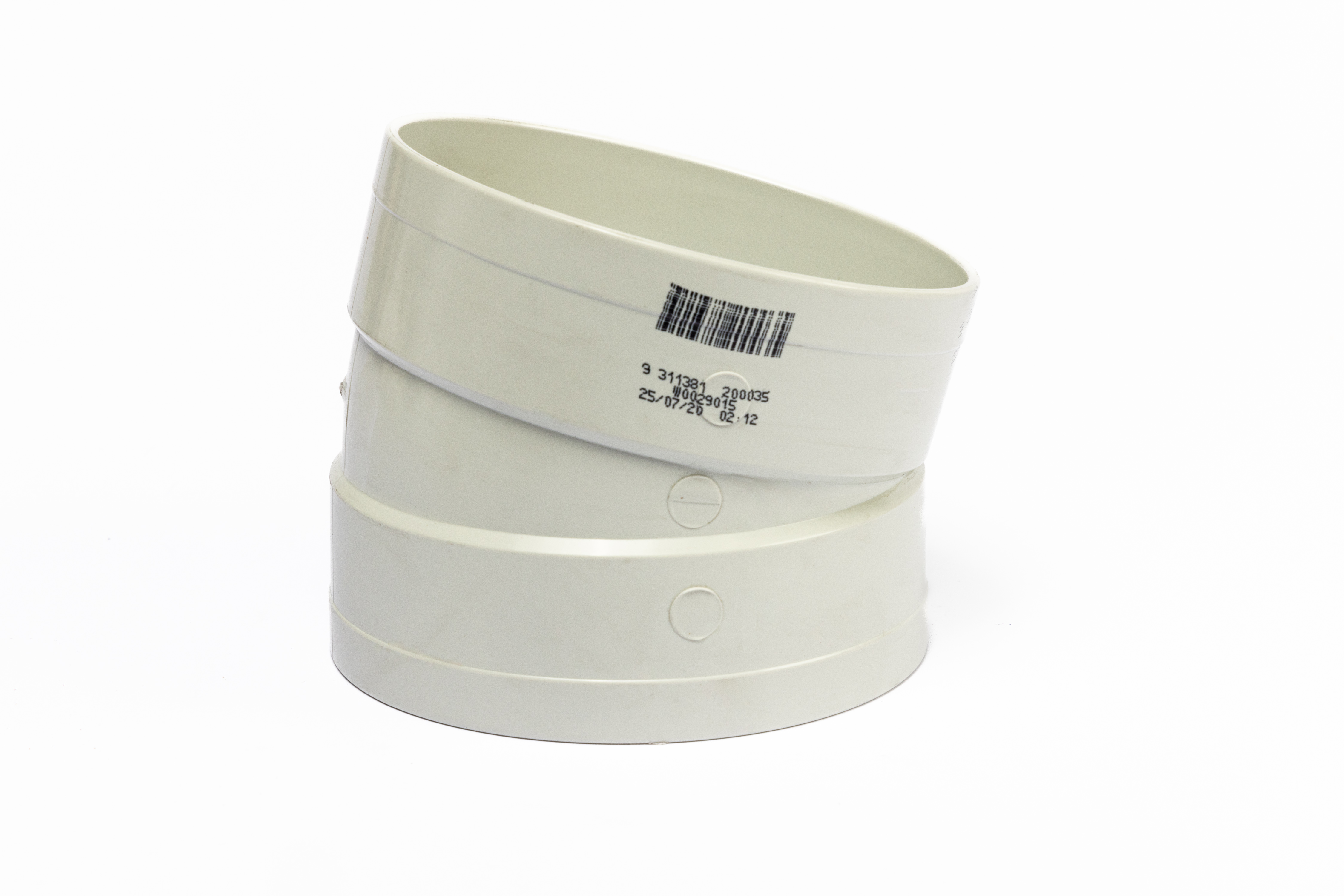

DN90 x 15D Stormwater PVC-U Bend FF SWJ

System:
PVC Non Pressure
Sub System:
Stormwater
Product Code:
W0029015

Changes direction of a pipeline conveying rainwater or surface water by 15°

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Data Sheet
Link

Product properties

Size
90MM
Rating
SN2
Length
BLANK
Degree
15
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
60
Average Number of Joints per Litre - Iplex Primer
180
Cure Time for Solvent Weld Joints
24hrs
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

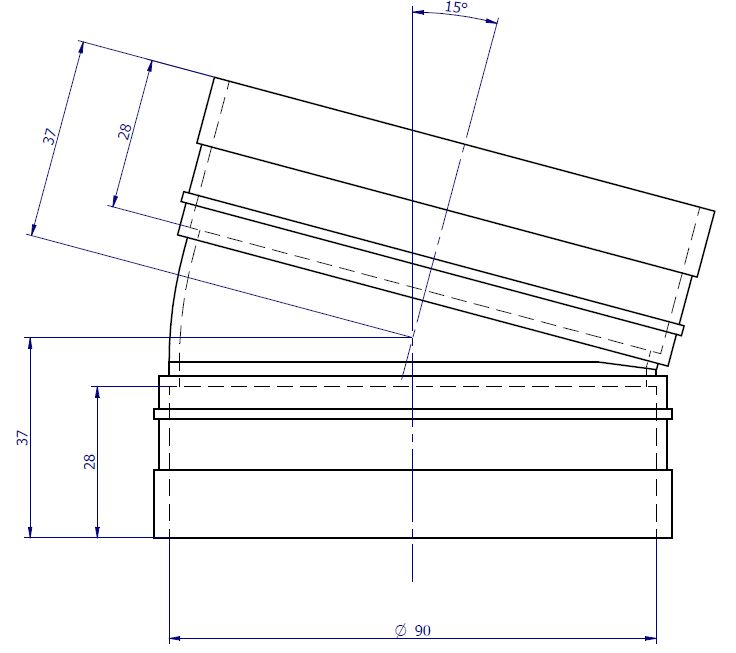

Product dimensions

Size
90MM
ID
90mm
Weight
0.06kg
Carton Qty
110
Carton Weight
7.37kg
Wall Thickness
1.9mm
Socket Depth
28mm
Max Socket Nominal OD
93.8mm
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 1254
POP Documents

Warranty
1 Year
