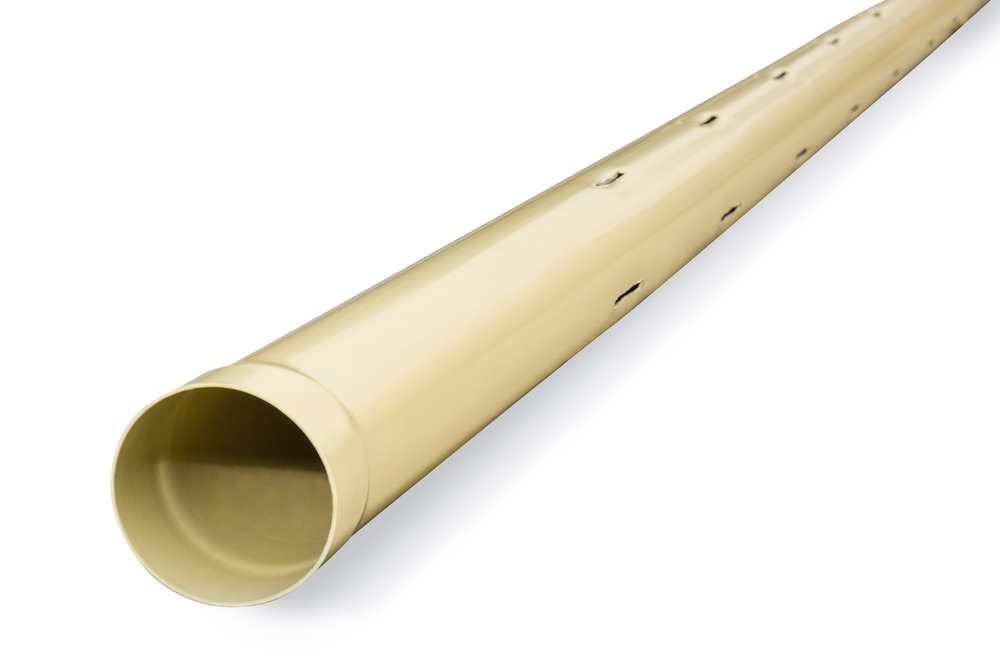

DN90 x 6m SN2 Stormwater PVC-U Slotted Pipe SWJ

Enquire    Download Product Sheet

Enquire



WPSO90SL

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Tree root intrusion resistant
Product Data Sheet Artboard View
Product Properties
Size 90MM
Rating SN2
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type Solvent Weld Joint
Colour White
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 60
Average Number of Joints per Litre - Iplex Primer 180
Cure Time for Solvent Weld Joints 24hrs
Allowable Operating Temperature - Degrees 60℃
Minimum Radius of Curvature 27m
Socket Deflection 0
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.2m
Maximum Support Spacing of Pipe Vertical 2.5m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 176MPa
Compressive Strength 66MPa
Tensile Modulus 3200MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 11MPa
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 x 10³ W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1

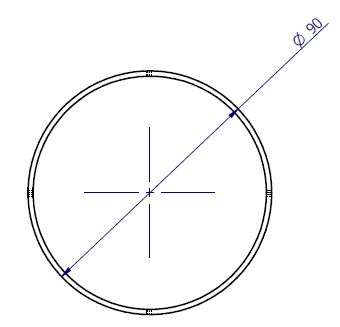

Dimensions
Size 90MM
Inner Diameter 86.2mm
Weight 5kg
Crate Qty 81
Crate Weight 405kg
Wall Thickness 1.9mm
90 SW PIPE SWJX6M SLOTTED
Standards & Accreditations
Product Standard AS/NZS 1254 "PVC-U pipes and fittings for stormwater and surface water applications"
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
