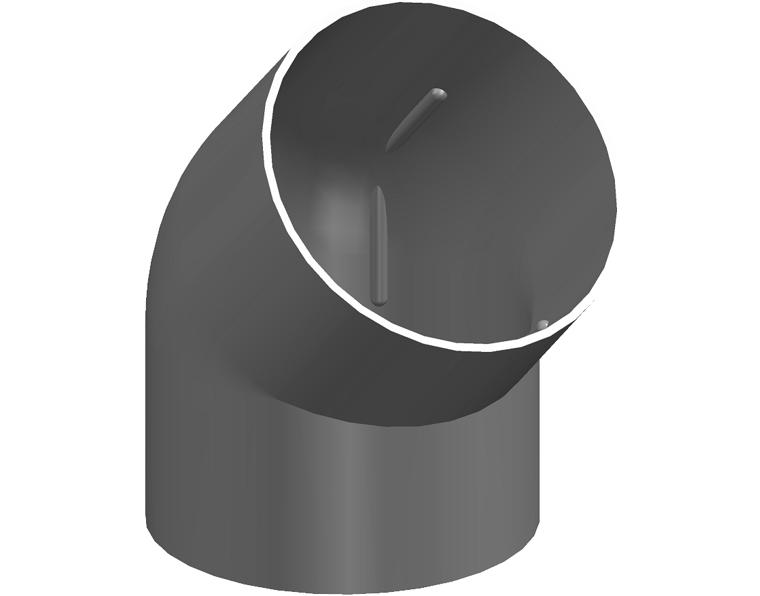

DN75 x 45D Rainwater PVC-U Bend FF SWJ

System:
PVC Non Pressure
Sub System:
Stormwater
Product Code:
R0027545

Changes direction of a pipeline conveying rainwater or surface water by 45°

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Data Sheet
Link

Product properties

Size
75MM
Rating
SN2
Length
BLANK
Degree
45
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
White
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
60
Average Number of Joints per Litre - Iplex Primer
180
Cure Time for Solvent Weld Joints
24hrs
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

Product dimensions

Size
75MM
ID
75mm
Weight
0.08kg
Carton Qty
100
Carton Weight
8.2kg
Wall Thickness
1.6mm
Socket Depth
30mm
Max Socket Nominal OD
78.2mm

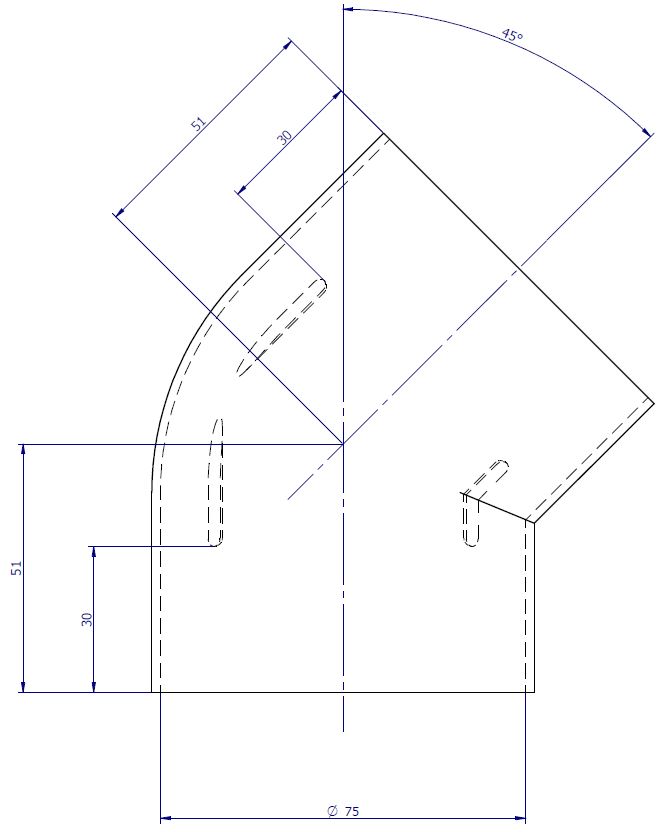

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 1254 "PVC-U pipes and fittings for stormwater and surface water applications"
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
