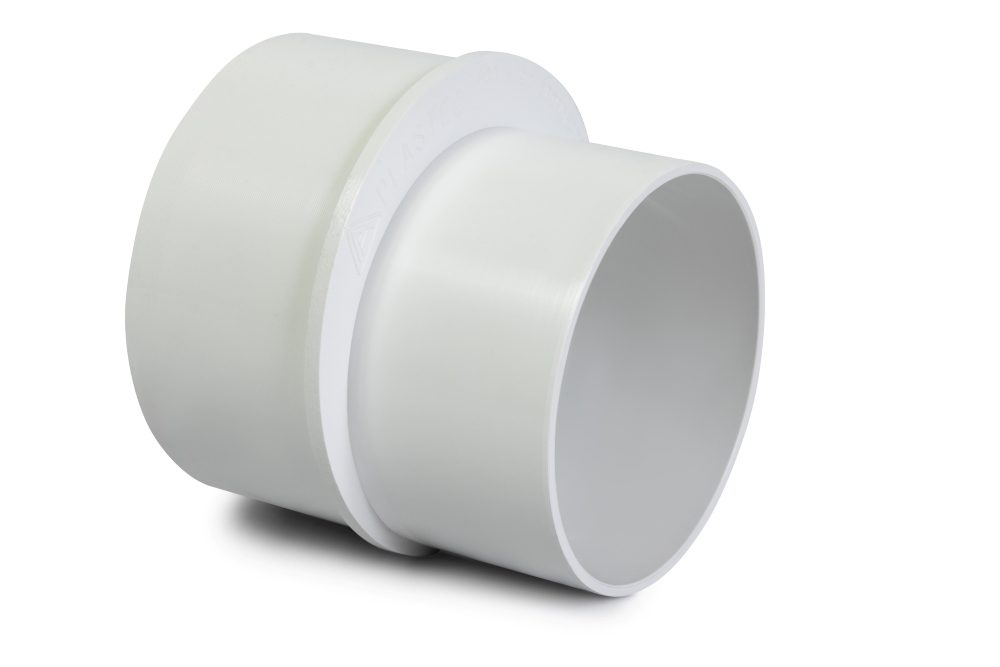

DN75 x DN100 Stormwater PVC-U Adaptor SWJ

Enquire    Download Product Sheet

Enquire



W04175100

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Data Sheet Artboard View
Product Properties
Size 75MM
Rating SN2
Length BLANK
Primary Material PVC
UOM EACH
Joint Type SWJ
Colour Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 60
Average Number of Joints per Litre - Iplex Primer 180
Cure Time for Solvent Weld Joints 24hrs
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 151.25MPa
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1
Dimensions
Size 75MM
Inner Diameter 75mm
Weight 0.15kg
Carton Qty 45
Carton Weight 6.84kg
Wall Thickness 1.6mm
Socket Depth 50mm
75X100 SW ADAPT
Standards & Accreditations
Product Standard AS/NZS 1254
Warranty 1 Year
