DN75 Stormwater PVC-U Coupling FF SWJ

System:
PVC Non Pressure
Sub System:
Stormwater
Product Code:
W05775

Connects pipeline conveying rainwater or surface water

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Data Sheet
Link

Product properties

Size
75MM
Rating
SN2
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
60
Average Number of Joints per Litre - Iplex Primer
180
Cure Time for Solvent Weld Joints
24hrs
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

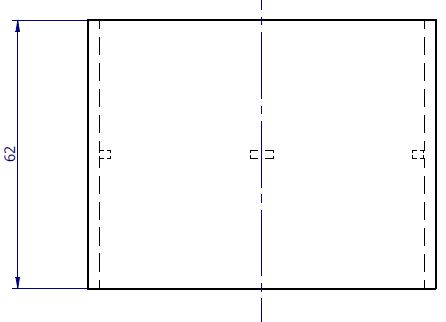

Product dimensions

Size
75MM
ID
1.6mm
Weight
0.06kg
Carton Qty
185
Carton Weight
12.58kg
Wall Thickness
31mm
Socket Depth
78.2mm
Max Socket Nominal OD
114mm
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 1254
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
