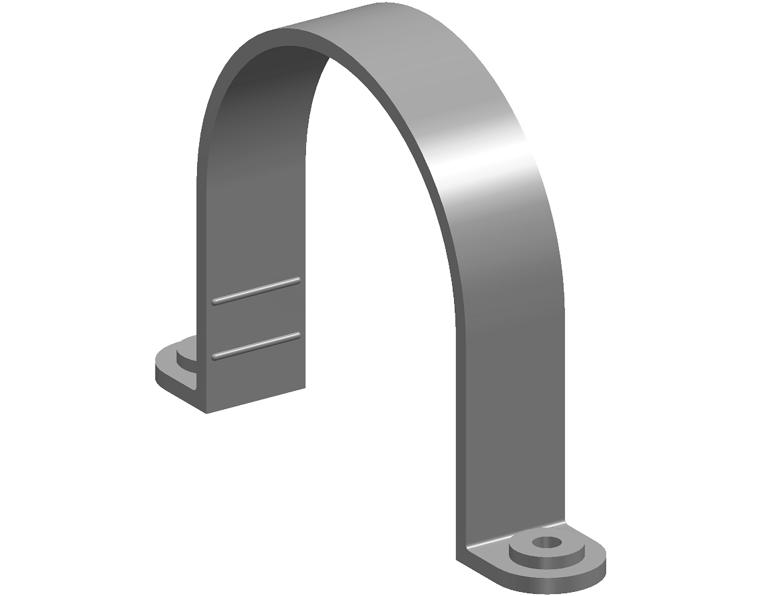

DN75 Rainwater Downpipe Clip

System:
PVC Non Pressure
Sub System:
Stormwater
Product Code:
R18575

Supports rainwater pipe horizontally and vertically or to strengthen an angle

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Data Sheet
Link

Product properties

Size
75MM
Rating
SN2
Length
BLANK
UOM
EACH
Joint Type
SWJ
Colour
White
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
75oC
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

Product dimensions

Size
75MM
ID
75mm
Weight
0.02kg
Carton Qty
900
Carton Weight
17.1kg
Wall Thickness
1.6mm

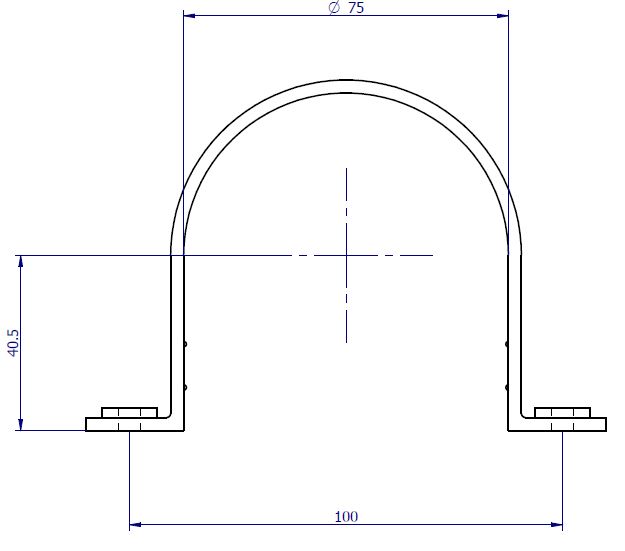

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 1254
POP Documents

Warranty
1 Year
