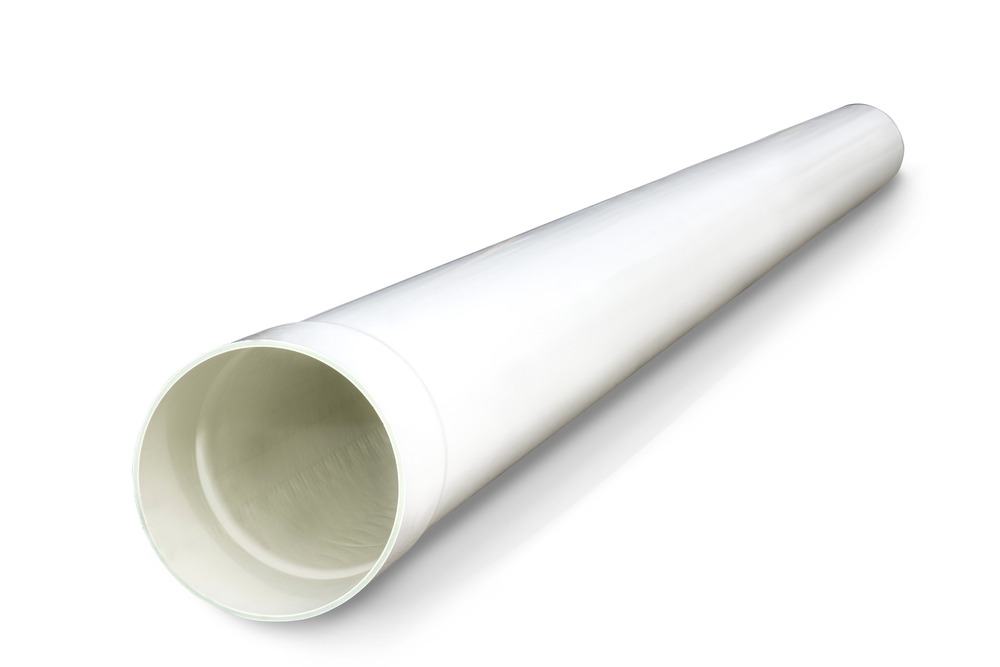

DN375 x 6m SN2 Stormwater PVC-U Pipe SWJ

System:
PVC Non Pressure
Sub System:
Stormwater
Product Code:
WPSO375

Can be used above or below ground to carry rain which runs off surfaces where water cannot penetrate including roofs, driveways and roads to natural water bodies-creeks, rivers and the sea

Features

  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Tree root intrusion resistant

Additional Information

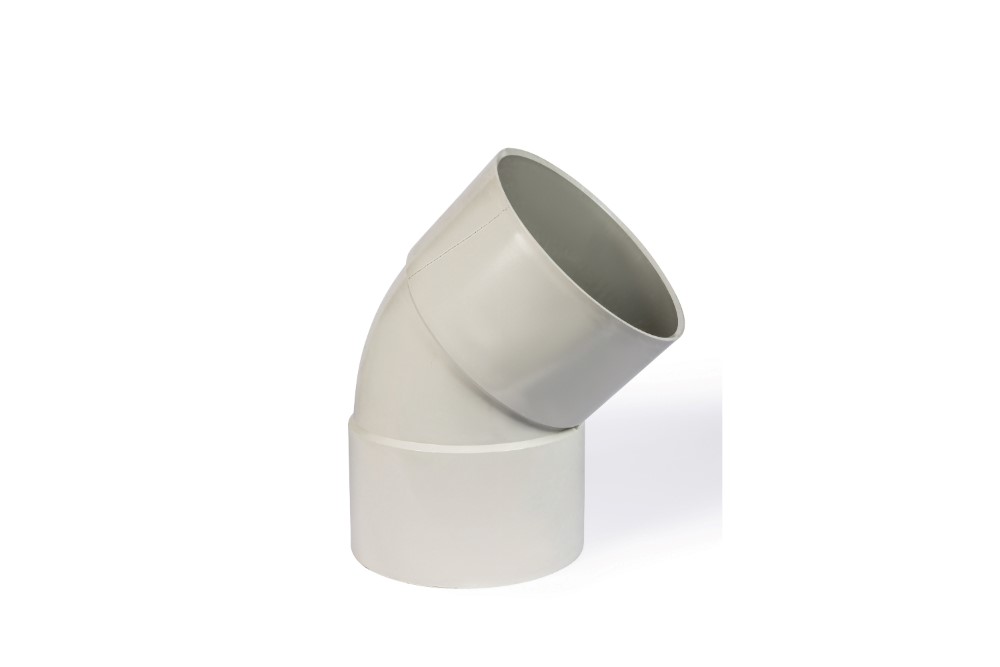

For larger size fittings refer to Iplex DWV range

Product Data Sheet
Link

Product properties

Size
375MM
Rating
SN2
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
Solvent Weld Joint
Colour
White
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
2
Average Number of Joints per Litre - Iplex Primer
6
Cure Time for Solvent Weld Joints
24hrs
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
112.5m
Socket Deflection
0
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
12.3MPa
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10??/°C
Thermal Conductivity
0.138 x 10?³W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1

Product dimensions

Size
375MM
ID
384.2mm
Weight
86kg
Crate Qty
6
Crate Weight
516kg
Wall Thickness
7.9mm

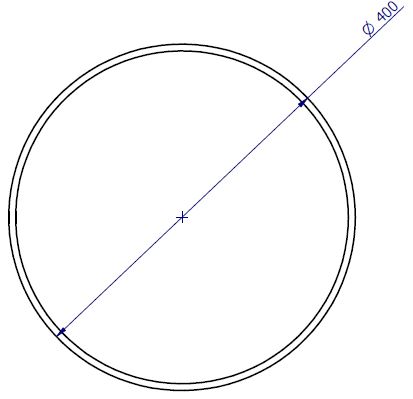

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 1254 "PVC-U pipes and fittings for stormwater and surface water applications"
POP Documents

Warranty
1 Year
