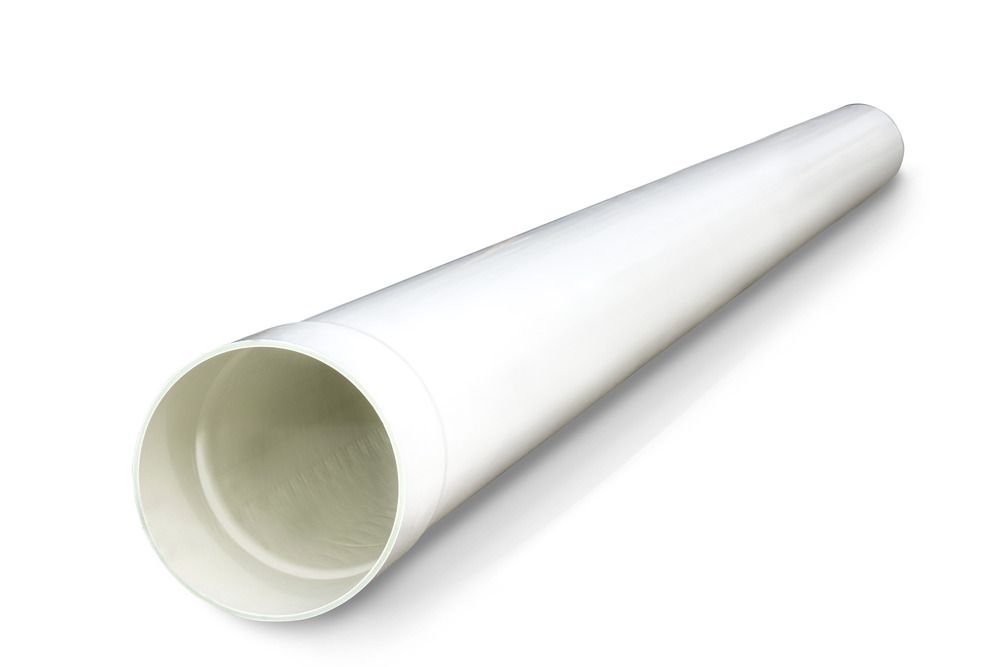

DN300 x 6m SN2 Stormwater PVC-U Pipe SWJ
Enquire Download Product Sheet
WPSO300
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Tree root intrusion resistant
Additional Information
For larger size fittings refer to Iplex DWV range
Product Data Sheet
View
Product Properties
Size
300MM
Rating
SN2
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
Solvent Weld Joint
Colour
White
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
4
Average Number of Joints per Litre - Iplex Primer
12
Cure Time for Solvent Weld Joints
24hrs
Allowable Operating Temperature - Degrees
60℃
Minimum Radius of Curvature
90m
Socket Deflection
0
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
176MPa
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
12.3MPa
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138 x 10³ W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1
Dimensions
Size
300MM
Inner Diameter
303mm
Weight
53kg
Crate Qty
6
Crate Weight
318kg
Wall Thickness
6mm

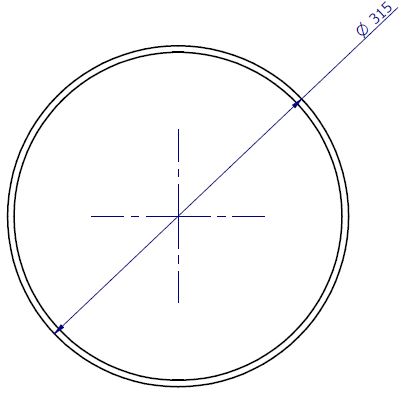

CAD PDF
View
Standards & Accreditations
Product Standard
AS/NZS 1254 "PVC-U pipes and fittings for stormwater and surface water applications"
Environmental Accreditation
Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
