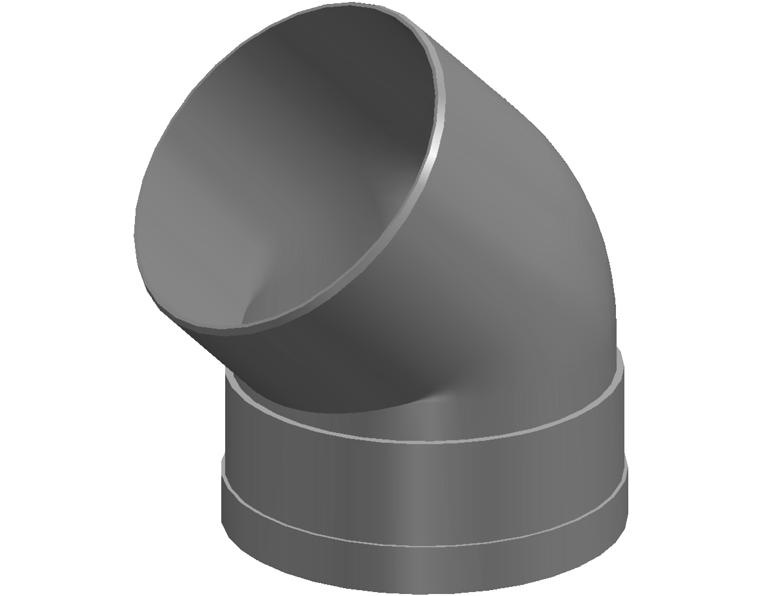

DN150 x 45D Stormwater PVC-U Bend MF SWJ

Enquire    Download Product Sheet

Enquire



W00315045

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Data Sheet Artboard View
Product Properties
Size 150MM
Rating SN2
Length BLANK
Degree 45
Primary Material PVC
UOM EACH
Joint Type SWJ
Colour Grey
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 22
Average Number of Joints per Litre - Iplex Primer 66
Cure Time for Solvent Weld Joints 24hrs
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 151.25MPa
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1

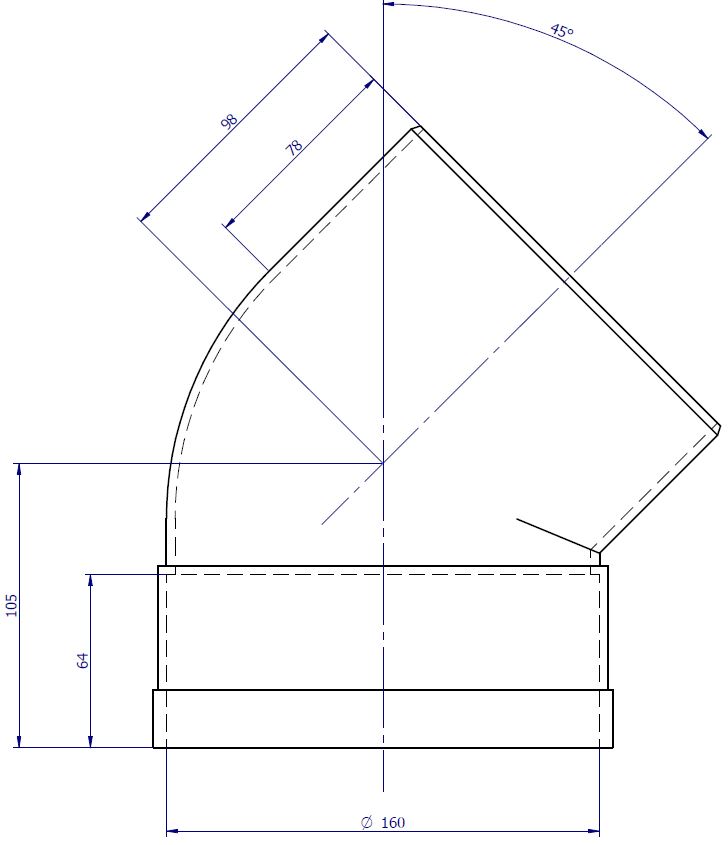

Dimensions
Size 150MM
Inner Diameter 160mm
Weight 0.47kg
Carton Qty 12
Carton Weight 5.60kg
Wall Thickness 3.2mm
Socket Depth 64mm
150X45D SW BEND MF
Standards & Accreditations
Product Standard AS/NZS 1254
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
