100X50X95D R/WATER ELBOW FF

DN100 x DN50 x 95D Rainwater PVC-U Bend FF SWJ



Enquire

Enquire



R002105095

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Treet root intrusion resistance
Product Properties
Size 100MM
Rating SN2
Length BLANK
Degree 95
Primary Material PVC
UOM EACH
Joint Type SWJ
Colour White
Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent 40
Average Number of Joints per Litre - Iplex Primer 120
Cure Time for Solvent Weld Joints 24hrs
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 2750MPa
Hardness Shore D 85
Poissons Ratio 0.38
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1400MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature 75℃
Flammability Will not support combustion
Fire Index - Ignitability 8
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 1

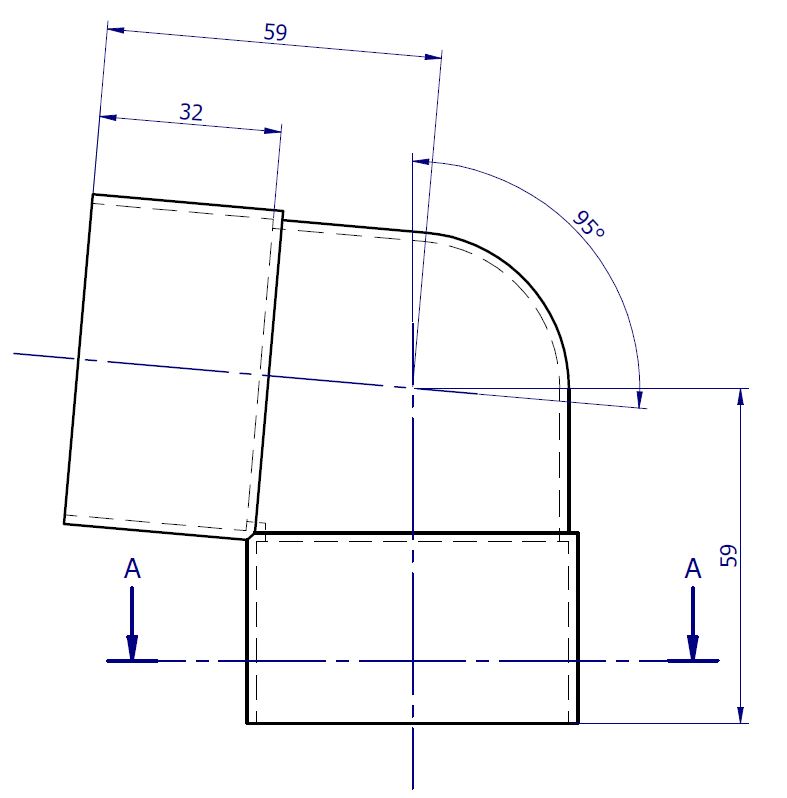

Dimensions
Size 100MM
ID 100mm
Weight 0.14kg
Carton Qty 70
Carton Weight 9.8kg
Wall Thickness 2.0mm
Socket Depth 32mm
Standards & Accreditations
Product Standard AS/NZS 1254 "PVC-U pipes and fittings for stormwater and surface water applications"
Environmental Accreditation Artboard View
POP Documents Artboard View
Warranty 1 Year
