Overview
- Australian made
- Light weight
- Ease of assembly
- efficient design
- low cost
Additional Information
Requires 2 x DN600 BlackMax Rubber Rings Iplex Code: GERSEW600

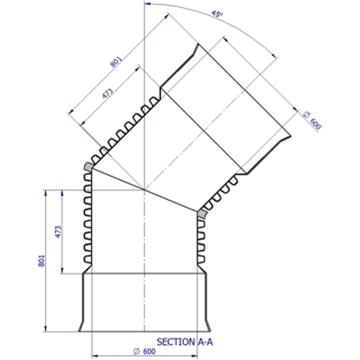

CAD PDF
View
Product Properties
Size/Diameter
600
Rating
Non Pressure
Degree
45°
Primary Material
POLYPROPYLENE
Joint Type
FF RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre - Iplex Lubricant
14
Allowable Operating Temperature - Degrees
Up to 50 °C. Re rating is applied for Temperatures >20℃
Socket Deflection
up to 2°
Markings
Manufacturers name and/or registered trademark > Nominal Size > PP > Date of Manufacture > Place of Manufacture
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5 / ° C
Dimensions
Size/Diameter
600
Weight
36.0 kg
Wall Thickness
3.5 mm
Socket Depth
296 mm
Witness Mark Detail
296
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
