GR25524590

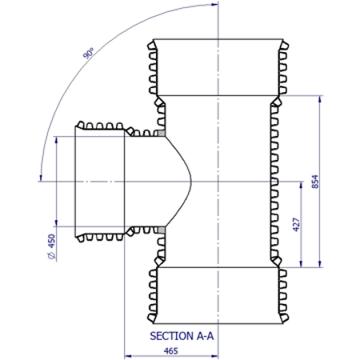

BlackMax® PP Reducing Tee DN525 x DN450 FFF Max RRJ Black/Yellow
Quick Menu
Overview
- Allows 90° branch connection
- Polypropylene
- Compatible with BlackMax® pipe
- RRJ
- Lightweight
- Corrosion resistant
- Provides complete plastic system with BlackMax® pipes
Additional Information
Requires 2 x DN525 BlackMax® Rubber Ring Iplex Code: GERSEW525 and 1 x DN450 BlackMax® Rubber Ring Iplex Code: GERSEW450
Product Data Sheet
View
CAD PDF
View
Product Properties
Size/Diameter
525 mm
Rating
Non Pressure
Degree
90°
Primary Material
POLYPROPYLENE
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre - Iplex Lubricant
16
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
up to 2°
Markings
Iplex > BlackMax® > Reducing Tee > RRJ > DN525 x DN450 x 90° > PP > Date of Manufacture > GR25524590
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Dimensions
Size/Diameter
525 mm
Weight
45.6 kg
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
