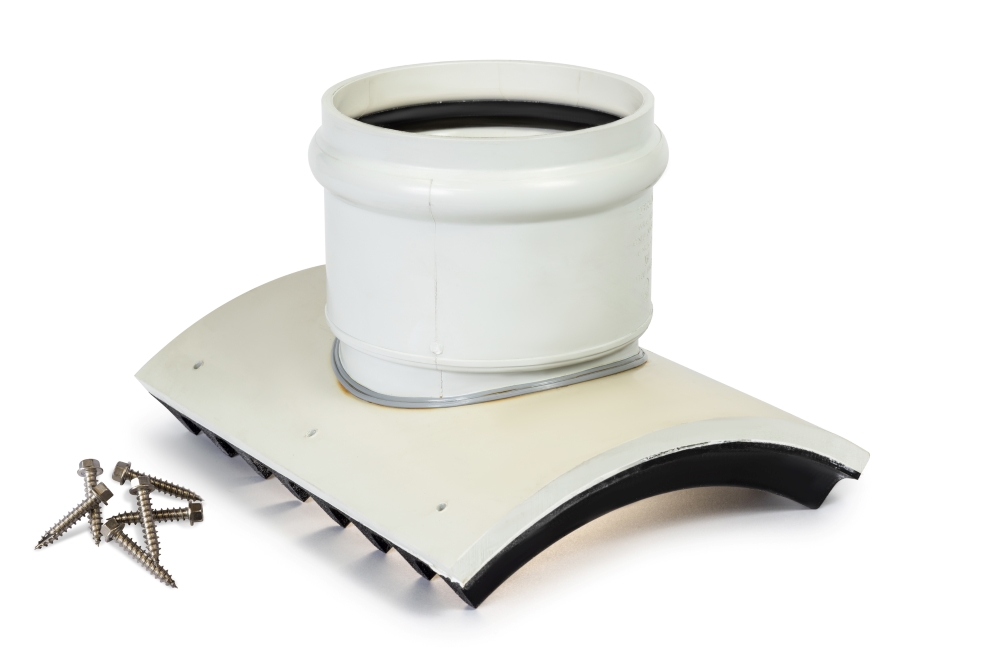

DN525 x dn150 x 90° BlackMAX® Stormwater Saddle DWV RRJ (PVC Fab)

System:
PP Drainage & Sewer Systems
Sub System:
Blackmax
Product Code:
GWR50521590

Stormwater drainage, Road drainage, Road culverts, Retention systems

Enquire

Features

  • Australian Made
  • Corrosion Resistant
  • Flexible

Additional Information

Used for incoming lateral connection with PVC DWV Stormwater Drain pipe (Silt proof)

Product properties

Size
525MM
Rating
Non Pressure
Length
BLANK
Degree
90
Primary Material
PVC
UOM
EACH
Joint Type
RRJ
Rubber Ring Material
Polyurethane
Colour
White
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Allowable Operating Temperature - Degrees
(Up to 50°C) - Re-rating is applied >30°C
Socket Deflection
up to 2°
Markings
Manufactures name and/or registered trademark > Nominal Size > PVC > Date of Manufacture > Place of Manufacture

Product dimensions

Size
525MM
Weight
3.60

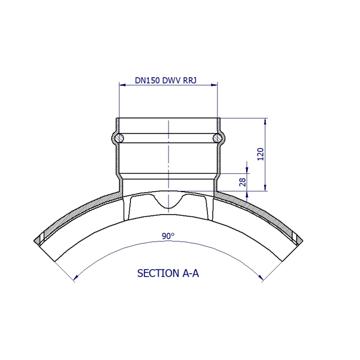

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
