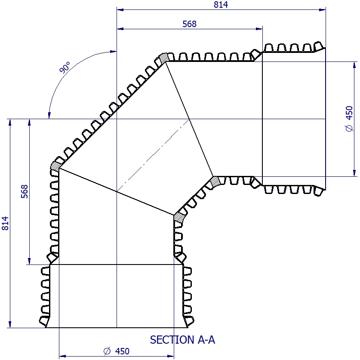

DN450 x 90° BlackMax® Bend FF RRJ (PP Fab)

Enquire

Enquire



GR0245090

Overview
  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits
Additional Information Requires 2 x DN450 BlackMAX® Rubber Rings Iplex Code: GERSEW450
Product Properties
Size 450MM
Rating SN8 / Non Pressure
Length BLANK
Degree 90
Primary Material POLYPROPYLENE
UOM EACH
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black external wall with yellow internal bore
Minimum Cover Depth SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant 18
Allowable Operating Temperature - Degrees (Up to 50℃) - Re-rating is applied >30℃
Socket Deflection up to 1°
Markings Manufacturers name and/or registered trademark > Nominal Size > Stiffness> PP > Date of Manufacture > Place of Manufacture
Dimensions
Size 450MM
Inner Diameter 447
Weight 22
Wall Thickness 2.8
Socket Depth 222
Witness Mark Detail 222
450X90D BLK MAX BEND FF RRJPP FAB
Standards & Accreditations
Product Standard AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
POP Documents PIPA Guidelines & Notes (iplex.com.au)
