Products » PP Drainage & Sewer Systems » Blackmax » 450X150X45D BLK MAX JUNC FFRED
  1. Back to Blackmax
Back

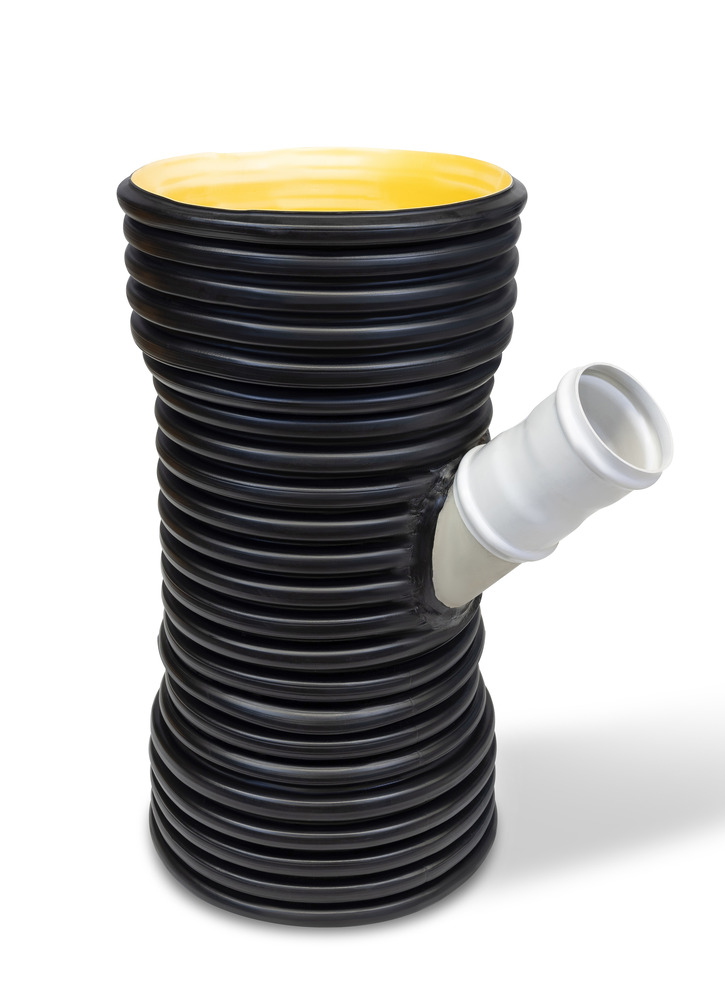

DN450 X dn150 x 45° BlackMAX® Reducing Junction FFF RRJ (PP Fab)

System:
PP Drainage & Sewer Systems
Sub System:
Blackmax
Product Code:
GR25451545

Stormwater drainage, Road drainage, Road culverts, Retention systems, Low head irrigation

Enquire

Features

  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits

Additional Information

Requires 2 x DN450 BlackMAX® Rubber Rings Iplex Code: GERSEW450 and 1 x dn150 DWV RRJ Coupling Iplex Code: DR57150

Product properties

Size
450MM
Rating
SN8 / Non Pressure
Length
BLANK
Degree
45
Primary Material
POLYPROPYLENE
UOM
EACH
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant
18
Allowable Operating Temperature - Degrees
(Up to 50°C) - Re-rating is applied >30°C
Socket Deflection
up to 2°
Markings
Manufactures name and/or registered trademark > Nominal Size > Stiffness> PP > Date of Manufacture > Place of Manufacture

Product dimensions

Size
450MM
Weight
35.00

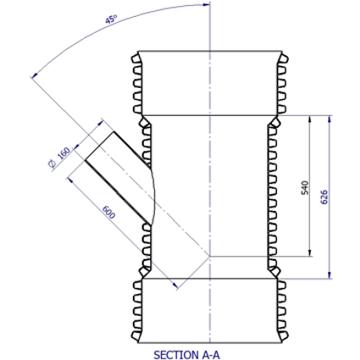

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
