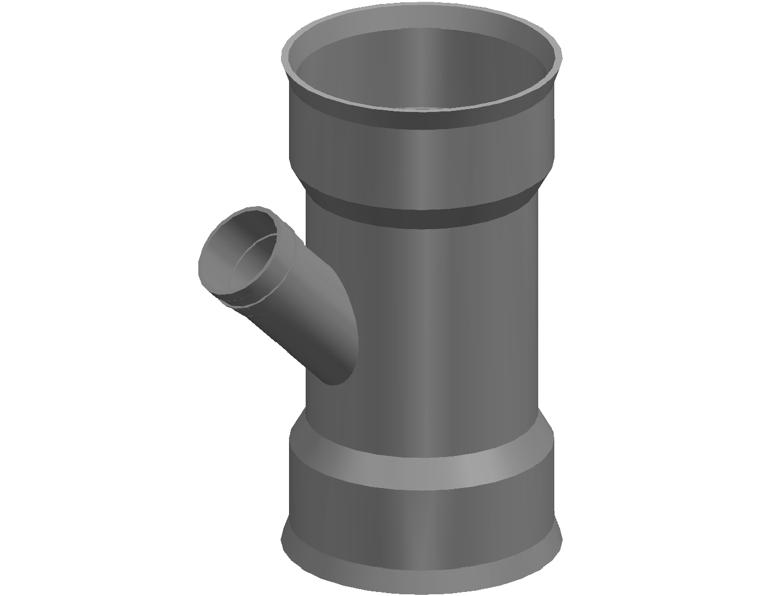

DN375 x dn150 x 45° BlackMAX® Reducing Junction FFF x DWV SWJ Branch (PVC Fab)

Enquire

Enquire



GWR25371545S

Overview
  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits
Additional Information Requires 2 x DN375 BlackMAX® Rubber Ring Iplex Code: GERSEW375
Product Properties
Size 375MM
Rating SN8 / Non Pressure
Length BLANK
Degree 45
Primary Material PVC
UOM EACH
Joint Type RRJ & SWJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black external wall with white internal bore
Minimum Cover Depth SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant 22
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection up to 2°
Markings Manufactures name and/or registered trademark > Nominal Size > Stiffness> PVC > Date of Manufacture > Place of Manufacture
Dimensions
Size 375MM
Weight 10

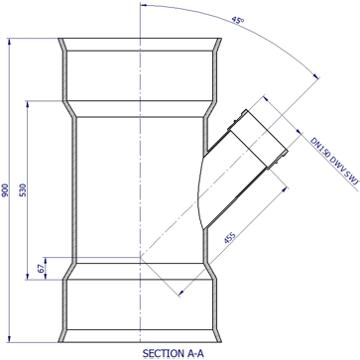

CAD PDF View
375X150X45D BLKMAX JUNC S/WELDRED PVC FAB - DWV SOLVENT WELD
Standards & Accreditations
Product Standard AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
